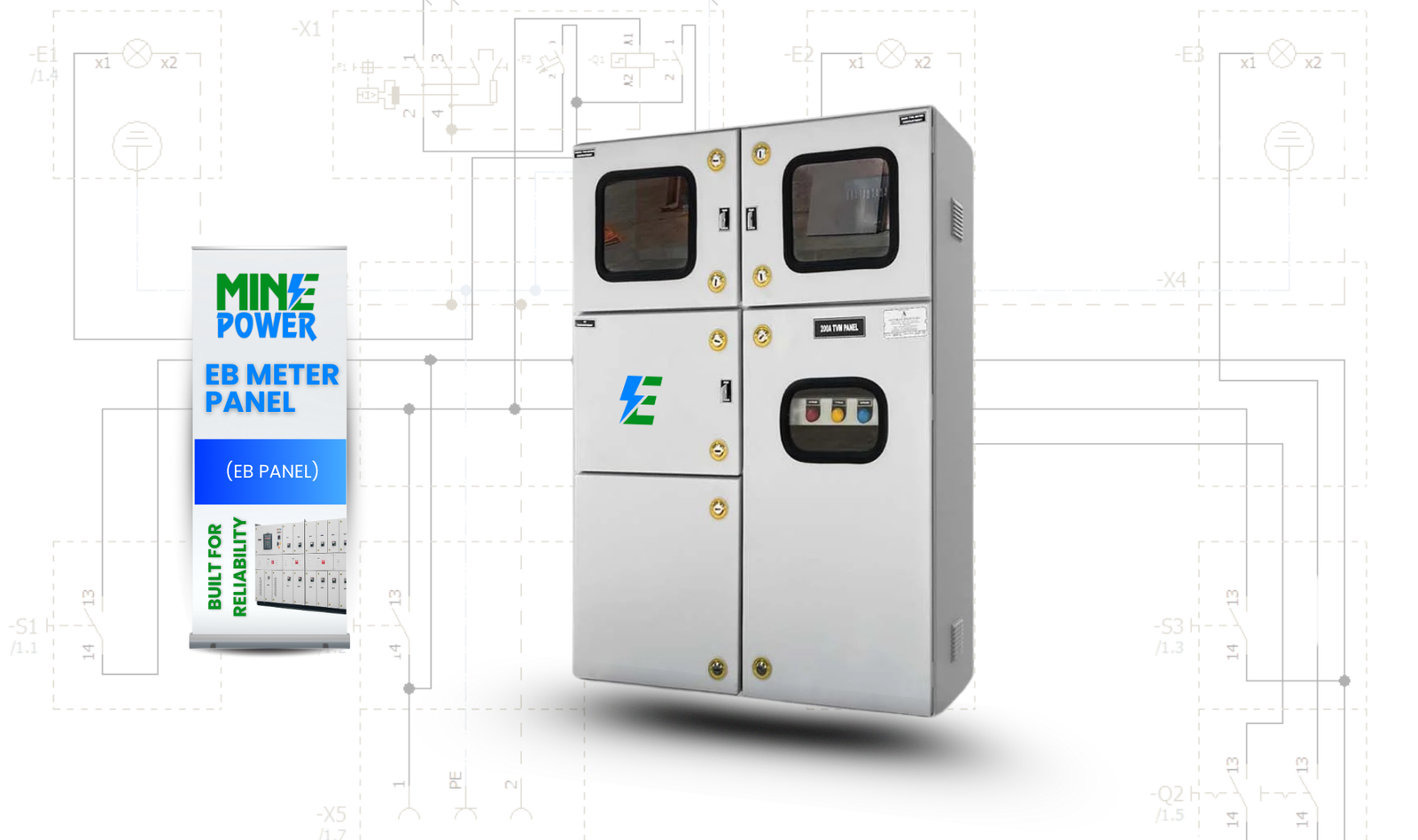

Meter Panel Board
Meter Panel board for multiple meter compartments. The NBH Metering Panels are the indoor and outdoor type which conforms to IP 54 degree of protection. All Metering Panels are properly pre treated & then powder coated. Some of the Salient features of our Metering Panels.
Metering panels are a kind of control panels that are very much required for the domestic as well as industrial purposes for the measurement of the amount of power used up and the rate of power consumption. Thee metering panels are the best equipment which can easily be installed and can conveniently be used for the processes of power consumption. These apartment metering panels are very easy to install and are provided with excellent anemometers and galvanometers for the calculation of present incoming and output voltage amplitude.
Mine Power manufacturing the Meter Panel board with a high standard of quality and reliability. As a result, Mine Power is a top 10 electrical panel manufacturer. LT panels are designed with rated current ranging from 100A to 6300A and up to 65KA and 80KA fault level.
Mine Power manufacturing the Meter Panel board with a high standard of quality and reliability. As a result, Mine Power is a top 10 electrical panel manufacturer. LT panels are designed with rated current ranging from 100A to 6300A and up to 65KA and 80KA fault level.
Additionally, all Our LT panels having undergone pretreatment for Decreasing, Water rinsing & De-rusting/ Phosphating, also all LT panels painted with Powder Coated or Synthetic enamel as per the requirements. After that, seven tank processes made by the painter. Similarly, Bus Bars / Internal Wiring uniform cross-section and supported by SMC and DMC bases. Similarly, earthing Bus Bars running all along with the Panel. In Conclusion, the Meter Panelboard are an important aspect of electrical control panels and LT panels.
All the Panels with metal clad, totally enclosed, rigid, floor mounted, air-insulated, cubical type suitable for operation on three-phase / single phase,415 or 230 volts, 50 Hz. The panels will designed for the minimum expected ambient temperature of 45 degrees Celsius, 80 percent humidity, and dusty weather.
Using in Dairy, Plastic industry, Refrigeration plants, Batching plants, Chemical Plants, and many more related to electricity.
Mine Power focus the product and services delivery to industries such as solar power plants, Utilities of industries, Manufacturing plants, Mining and ball mills, Food Beverage, Marine, Construction, and Other industries that require a reliable partner for a cost-effective solution for electrical panels.
Well equipped with all the required necessities
Easy and comfortable operation
Convenient installation
Cost efficient
Sturdy construction
NBH Metering Panels are Fully Compartmentalised in design
Provision for Main and DG Supply is provided in NBH Metering Panels
Current limiting option is available in our Metering Panel design
Dual meter option is available in NBH Metering Panels
Provisions for future extensions
Permanent identification labels shall be provided in Metering Panels as per site application demand for each compartment
Electrolytic Grade tested Bus Bars – Copper or Aluminium as desired
Proper Earthing provided at the bottom of the panels throughout the entire length
Metering Panels have Removable Gland plates
Permanent computerized identification labels / Ferrules provided
Degree of Protection IP 54
Short circuit breaking Capacity of 50KA for 1 second.
NBH Metering Panels have facilities like DG Incomer with AMF Functions, Required feeders shall be operated on DG Incomers as per interlocking with cut off features
Panel metering is key to understanding energy consumption in homes, buildings, and facilities. This is often undertaken by either metering the whole panel at the source, or by metering individual circuits for more refined results (branch circuit monitoring).
Meter Panel board offers a wide array of features including data logging, internal memory, time-of-use, power quality, and more. Additionally, panel meters can also feature a variety of communication options that allow for the collection of data remotely. This offers convenient access to an array of power and energy readings remotely, and the ability to produce detailed reporting.
