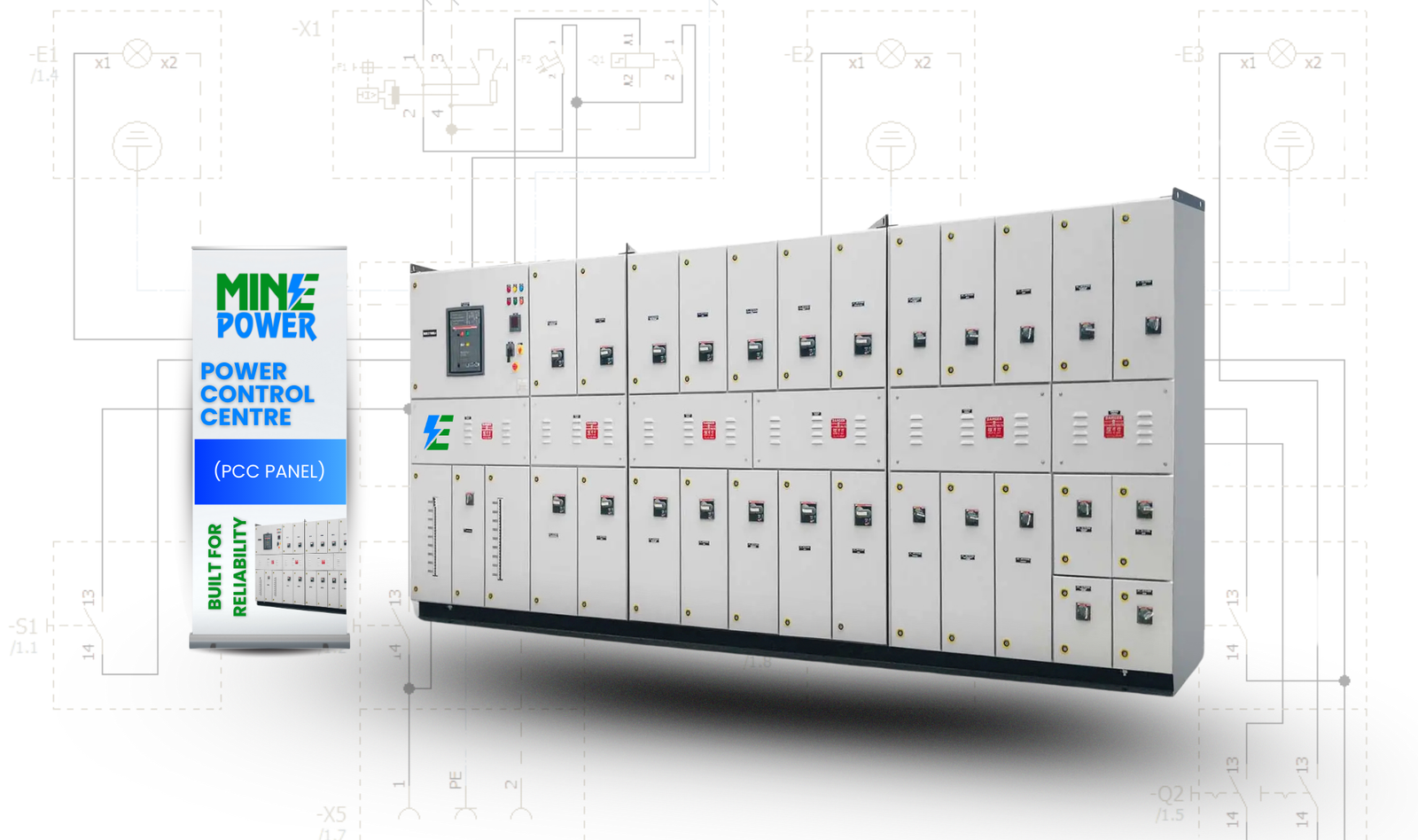

PCC (Power Control Centre)
PCC (Power Control Centre) Panels are used to supervise and control the voltage and power of the power system. These panels are made of high-quality raw material and are extremely sturdy in fabrication. Main power instrument panel which consists of feeder breakers and provide breakers, monitoring devices and control devices. A reputed pcc panel manufacturer read all field data received for electrical power panels are designed.
PCC panel and lt panels are made from 14/16 SWG CRCA material semi bolted structure firmly supported. Ensures desired breaking capacities, temperature rise & IP protection. Enough Space for incoming & outgoing Cable termination. Outgoing terminals are stud type as per IEC standard.
Power control center Panels are the most essential part of electrical system. An industry from where the power of the industry is controlled. Perfect Products (India) is widely known for premium quality power distribution board designed and made consistent with the customer specifications. Best quality switchgear and busbar are used for reliable and efficient performance.
All the base plates are neatly mounted with necessary electrical components to ease the wire routings & wherever necessary PVC ferrules provided. The component Identification stickers are provided both on the components & base plates.
Main power control board which consists of feeder breakers and provide breakers, monitoring devices and control devices. Our offered panel is very recommended among our clients and widely utilized in various industries.
PCC : Power Control Panel
MCC : Motor Control Panel
AMF: Auto Mains Failure
PMCC : Power & Motor Control Centre
A : Ampere Meter
V : Voltmeter
V : Voltmeter
PCC panel full form is Power Control Center in Distribution and control for a various electrical power source in Industry. Therefore, it is the most important thing about electricity. In OtherWords, PCC panels are a distribution boards rule contain any power and would be simply power distribution. Industries need low maintenance, better working and affordable design for LT PCC Panels.
Mine Power-Panels manufacturing the PCC Panel with a high standard of quality and reliability. As a result, Mine Power is a top 10 electrical panel manufacturer. LT panels are designed with rated current ranging from 100A to 6300A and up to 65KA and 80KA fault level.
Mine Power PCC is a power distribution board to control the Electrical power supplied to HT Panels, MCC Panels, and transformers who play a vital role in all electrical control systems. Mine Power PCC panels widely used in refineries, chemical plants, pharmaceuticals, and Solar Industries.
Firstly, all indoor panels have the protection of IP54 or better even more all outdoor panels have protected with IP65 or better. Secondly, all PCC Panels made by laser cutting CRCA sheet and powder coating with the 7-Tank process.
Mine Power are manufactured in a perfectly compartmentalized structure design from ms sheet. Premium quality insulators are used to ensure the safety of the busbar. Also, Provision of space heaters, thermostats, and backup protection if required by the customers.
Following Drawings are provided to the customer before starting the manufacturing of PCC panel:
- General Arrangement
- Single Line Diagram
- Bill of Material
- General Notes
- Control Circuits-schemes
Following Tests can be witnessed by the customer
- Dimensional Check
- b) Bill of Material Verification
- c) Functional Checks
- d) Two lamp Series Test
- e) Insulation resistance test
- f) High Voltage Test 2.5. KV for 1 minute
