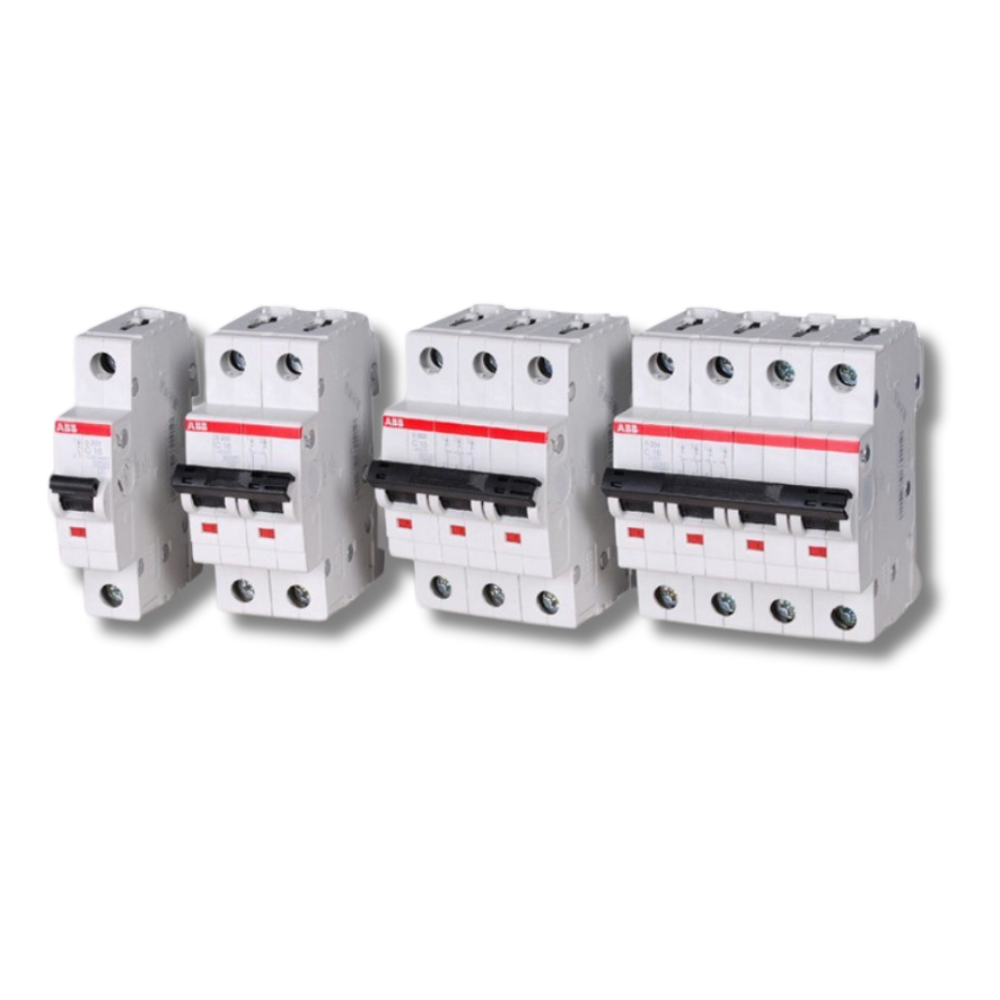

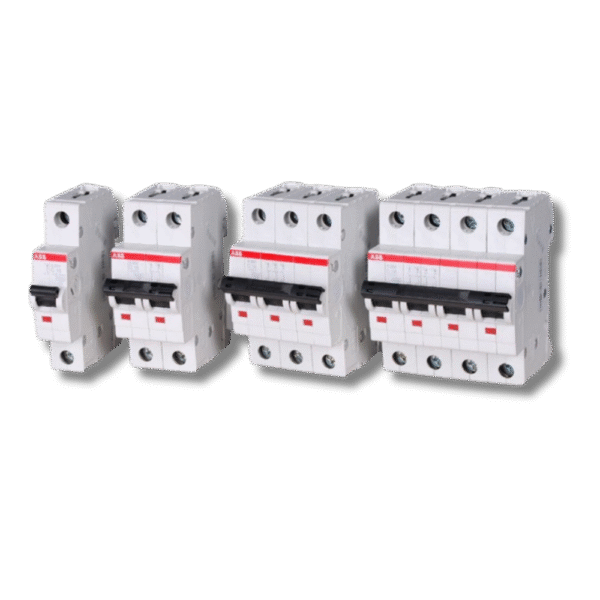

ABB Miniature Circuit Breakers (MCBs) deliver robust protection against overloads and short circuits across residential, commercial, and industrial environments. Available in configurations from 1-pole to 4-pole, with trip characteristics tailored for diverse loads, and backed by a modular design ethos that supports sustainability and accessory integration—they are a trusted solution for modern electrical safety and efficiency.
Description
ABB’s MCBs are compact, modular circuit protection devices designed to safely interrupt overloads and short circuits in low-voltage systems. Integrating thermal-magnetic tripping mechanisms, these breakers rapidly disconnect circuits during fault conditions, safeguarding wiring and reducing fire risks.
Specifications
-
Rated Current Range: 0.5 A to 63 A (IEC standard) ABB Group
-
Trip Curves: B, C, D, K, Z — to suit various load characteristics and inrush behaviors ABB Group+1Shop | Micronova Impex
-
Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P ABB Group+2ABB Group+2
-
Breaking Capacity (Icn): Up to 25 kA (AC systems) ABB Group+1
-
Voltage & Certifications: Rated up to ~480 VAC and compliant with IEC, UL, CSA standards ABB Group+1
-
Product Ranges:
-
S200 – general applications, modular interfaces ABB Group+1
-
SB200M – ultra-compact design under System pro M Compact series pigeonagency.co.inABB MarketplaceElectrical Fuses & Contactors
-
S400M/S400P – high-performance models for demanding environments with higher breaking capacities ABB Group
-
Features
-
Dual Trip Mechanism: Thermal for overloads; magnetic for short circuits ABB GroupElectrical Fuses & Contactors
-
Contact Position Indication: Visual ON/OFF markers on the toggle switch ABB Group+1
-
Safety Design: IP20 finger-safe terminals; laser-marked housings with halogen-free thermoplastics for sustainability ABB Group
-
Accessory Compatibility: Supports auxiliary contacts, shunt trips, busbars, and even remote switching mechanisms Shop | Micronova ImpexABB Group
Applications
-
Residential, commercial, and industrial power distribution
-
Panelboards, lighting circuits, motor protection, and PV systems
-
Rail, marine, EV charging, and traction infrastructure Shop | Micronova ImpexABB Group+1
Advantages
-
Wide Applicability across sectors and regions
-
Flexible Protection with multiple trip profiles
-
Compact & Modular for easy installation and panel space optimization
-
Smart & Safe Design ensures visible isolation and environmental compliance
Disadvantages
-
Limited breaking capacity (higher ratings may require MCCB or specialized models)
-
Needs careful selection for high inrush (e.g., motors) or unique system dynamics
-
Accessory add-ons may increase panel cost and complexity
