ABB MPCB

Description

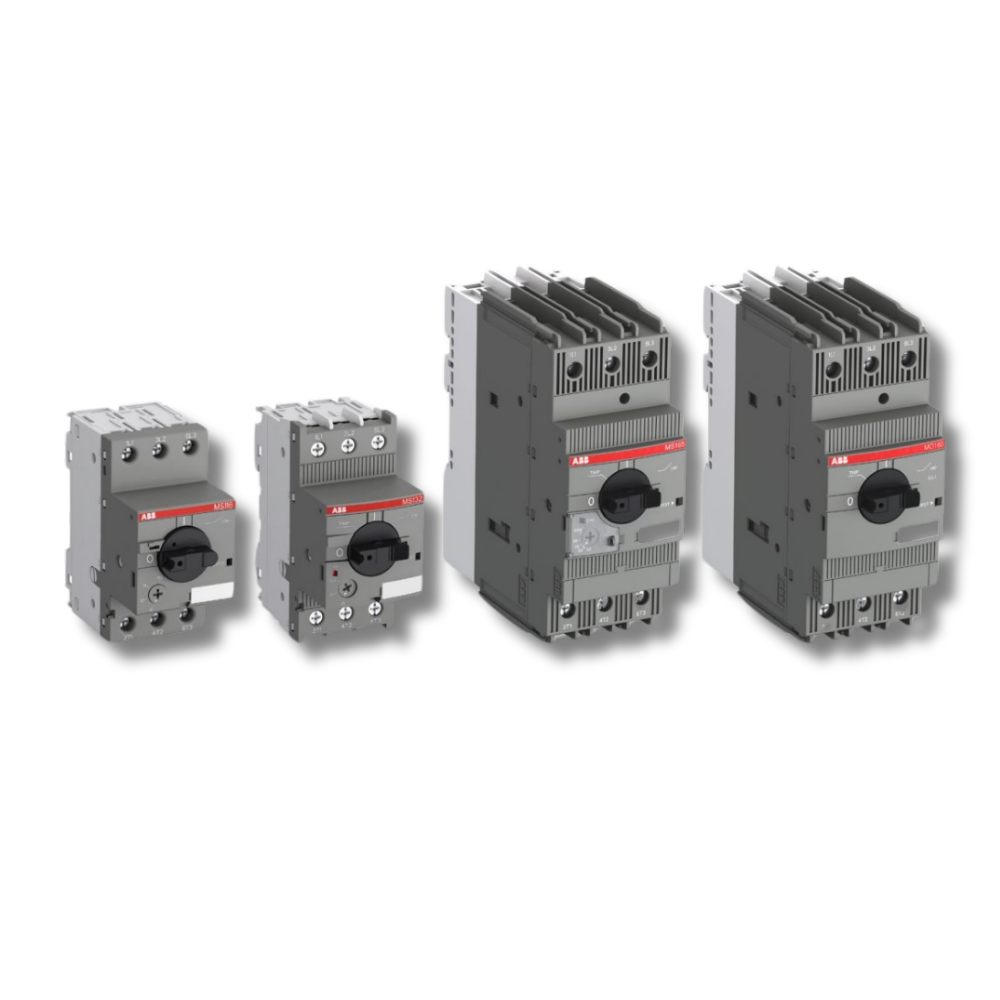

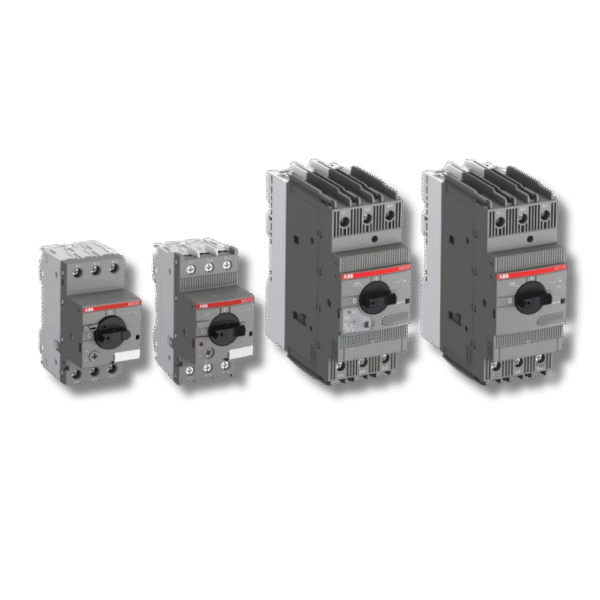

ABB’s MPCBs (also called manual motor starters) are compact devices combining overload, short-circuit, phase loss, and manual disconnection protection for motors. These DIN-rail or panel-mount breakers feature a rotary knob for simple ON/OFF/TRIP operation.

Specifications

MS116 Series

• Models / Ratings:

  • MS116-0.4 (0.4 A nominal) RS Components

  • MS116-6.3 (4.0 – 6.3 A adjustable) – 50 kA breaking capacity at 690 VAC RS ComponentsAICTE

  • MS116-10 (10 A) – 18 kA breaking capacity at 690 V RS Components

  • MS116-16 (16 A) – economic, fuseless, short-circuit proof (50 kA), with lockable knob RS Components

• Mechanical Dimensions: ~90 mm × 45 mm × 80–90 mm

• Features: Thermal-magnetic trip, phase-failure sensitivity, IEC 60947-1/2 certified RS ComponentsABB Group

• Accessories: Auxiliary contacts, signal contacts, under-voltage releases, IP65 shrouds RS Components

MS132 Series

• Example Model MS132-10 (6.3–10 A) – 100 kA breaking capacity at 400 VAC, adjustable dial, DIN-rail or panel mount, wide voltage rating up to 690 V, high durability Lakeland Engineering Shop

• Model MS132-1.6 (1–1.6 A) – compact motor starter protecting against overload, short-circuit, and phase loss, 100 kA capacity RS Components

• Model MS132-32 – adjustable 25–32 A, lockable knob, IP20 rated Vashi Integrated Solutions Limited

Features

• Comprehensive Motor Protection: Includes overload, short-circuit, phase failure detection, and manual isolation.

• Rotary Knob Operation: Simple ON/OFF/TRIP with clear switching indication.

• High Interrupt Capacity: Ranges up to 100 kA depending on model and voltage.

• Compact Form Factor: Fits into tight panel spaces; variety of accessories extend functionality.

• Wide Compliance: Meets IEC 60947 standards; available with UL/CSA, ATEX, and other certifications Lakeland Engineering ShopABB Group.

Applications

• Motor protection in industrial automation panels

• Compact starter-protector setups in distribution boards

• Mining, oil & gas, and industrial plants where space and reliability matter

• Environments requiring high breaking capacity and adjustable protection

Advantages

• All-in-one motor protection and isolation device

• High short-circuit performance for safety

• Easy adjustment and robust manual control

• Scalable ratings (from <1 A to >30 A) for flexibility

Disadvantages

• Requires careful selection of current range and trip class

• Accessories and variants may complicate selection

• Higher cost compared to simple overload relays
