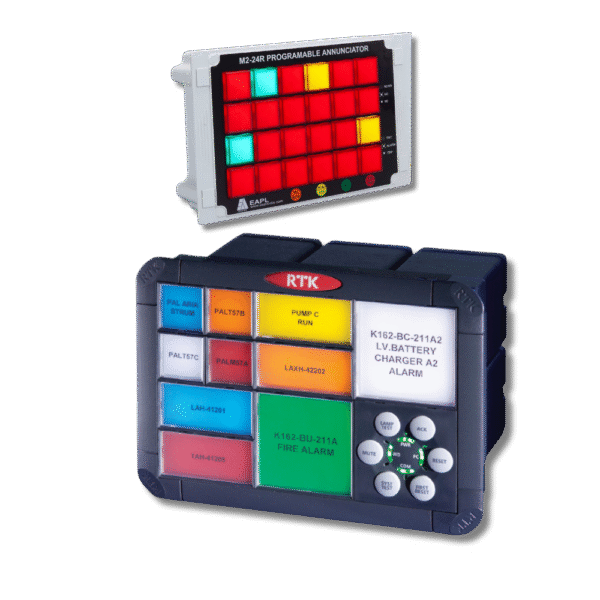

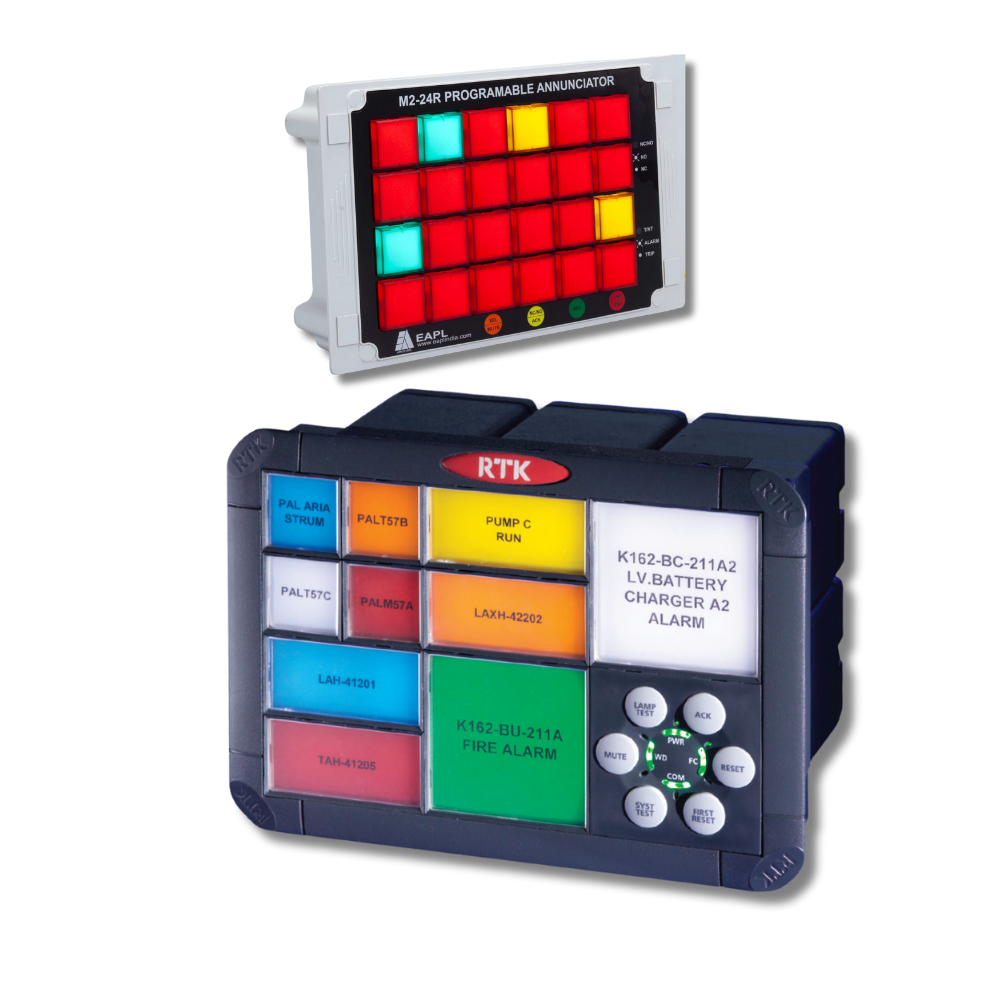

An Annunciator is a fault and alarm indication device that provides visual and audible alerts for abnormal conditions in industrial systems. Integrated with PLCs and SCADA, it ensures quick fault identification and operator response in power plants, substations, process industries, and control rooms.
Description
An Annunciator is a monitoring and alarm device used in industrial automation to provide visual and audible alerts for abnormal process conditions, equipment faults, or safety warnings. It typically uses LED windows (mimic display) with buzzers/alarms to indicate process status. In PLC-based systems, annunciators are widely used in power plants, substations, process industries, and control rooms to ensure operators can quickly identify and respond to faults.
Specifications
-
Input Signals: Potential-free contacts / 24 VDC / 110–230 VAC (PLC outputs or field signals)
-
Indication: LED windows (multi-window: 8, 16, 32, 64, etc.)
-
Alarm Output: Buzzer / Hooter / Relay output
-
Sequence: First-Out / First-Up / Acknowledge / Reset logic
-
Power Supply: 24 VDC / 110 VAC / 230 VAC
-
Mounting: Panel mount (modular type)
-
Interface with PLC: Digital I/O modules for fault monitoring
Key Features
✅ Multi-window fault and alarm indication
✅ Bright LED indication with clear labeling
✅ Audible alarm with acknowledge/reset functions
✅ First-Out (first fault detection) feature
✅ Compatible with PLC outputs and field sensors
✅ Rugged design for 24/7 industrial use
✅ Easy to install in panels & control rooms
Applications
Power Plants & Substations (generator, transformer, circuit breaker alarms)
-
Process Industries (boilers, furnaces, chemical plants)
-
Oil & Gas (safety and fault annunciation)
-
Manufacturing Plants (critical machine monitoring)
-
Water Treatment Plants (pump failure, tank level alarms)
-
Control Rooms & Panels (centralized fault indication)
Advantages
✔ Provides clear & immediate fault identification
✔ Improves operator response time to abnormal conditions
✔ Integrates easily with PLC and SCADA systems
✔ Reduces downtime by quick fault localization
✔ Available in modular expandable formats
Disadvantages
✖ Only indicates faults, does not correct them
✖ Requires labeling & proper wiring for clarity
✖ Can be bulky in large systems (many windows)
✖ Limited history logging compared to SCADA/HMI
