A DC Energy Meter is a precision measuring device used to monitor and record electrical parameters in DC-powered systems. It measures key parameters such as voltage (V), current (A), power (W), and energy consumption (kWh), providing real-time monitoring to ensure efficiency and safety. These meters are widely used in solar power plants, battery banks, EV charging stations, and telecom power systems where accurate DC energy measurement is essential.
Description
A DC Energy Meter is an advanced measuring instrument designed to monitor and record key electrical parameters in direct current (DC) systems. It provides accurate real-time readings of voltage, current, power, and total energy consumption (kWh), making it an essential tool for efficiency management and system protection.
Modern digital DC energy meters, such as the MULTISPAN MFM 14DC, feature a bright LED display for easy parameter monitoring, high accuracy measurement, and compact panel mounting. Some models also support communication protocols like RS485 Modbus, enabling remote monitoring and integration with energy management systems.
Widely used in solar power plants, battery banks, electric vehicle charging stations, telecom networks, and industrial DC systems, DC energy meters play a crucial role in optimizing energy usage, detecting anomalies, and ensuring the safe operation of power systems. Their reliability, precision, and ease of installation make them indispensable in modern DC-based applications.
Specifications
-
Type: Digital DC Energy Meter
-

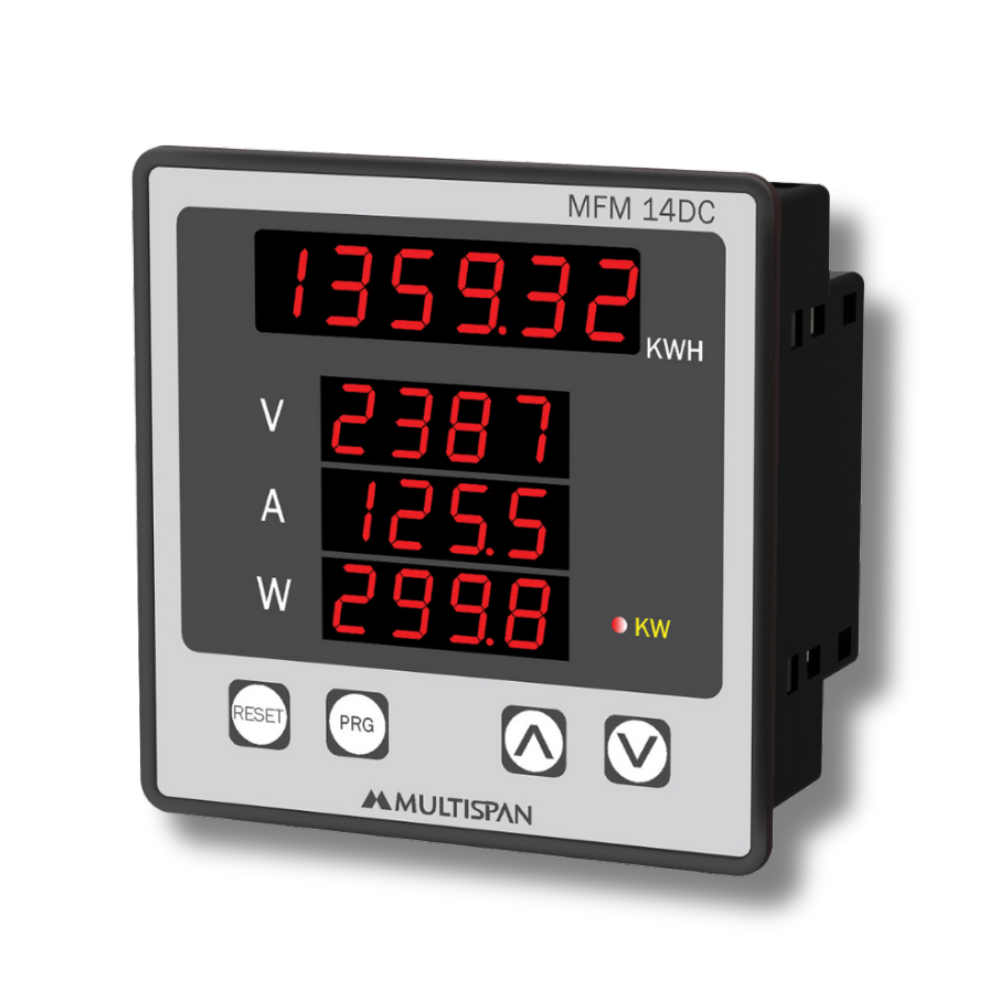

Brand Example: MULTISPAN MFM 14DC (shown in image)
-
Parameters Measured: Voltage (V), Current (A), Power (W), Energy (kWh)
-
Display: 4-digit / 6-digit bright LED display
-
Accuracy: High precision ±0.5% or better (model dependent)
-
Input Voltage Range: 10V to 1000V DC (varies by model)
-
Current Range: Up to 1000A (using external shunt)
-
Mounting: Panel Mount
-
Output Options: RS485 Modbus (in advanced models)
Features
-
Real-time monitoring of DC electrical parameters
-
High accuracy measurement of energy consumption
-
Bright LED display for clear visibility
-
Compact panel mount design
-
Suitable for solar, battery, and EV applications
-
Optional communication interface for remote monitoring
Advantages
-
Accurate monitoring of DC systems for efficiency
-
Helps optimize energy usage and reduce losses
-
Supports renewable and industrial applications
-
Easy installation and user-friendly interface
-
Reliable for continuous operation
Disadvantages
-
Measures only DC parameters (not suitable for AC systems)
-
Requires external shunt for higher current measurement
-
Advanced features may increase cost
Applications
-
Solar power plants
-
Battery management systems
-
Electric vehicle (EV) charging stations
-
Telecom and data center DC systems
-
Industrial DC distribution boards
-
Railways and defense DC applications
