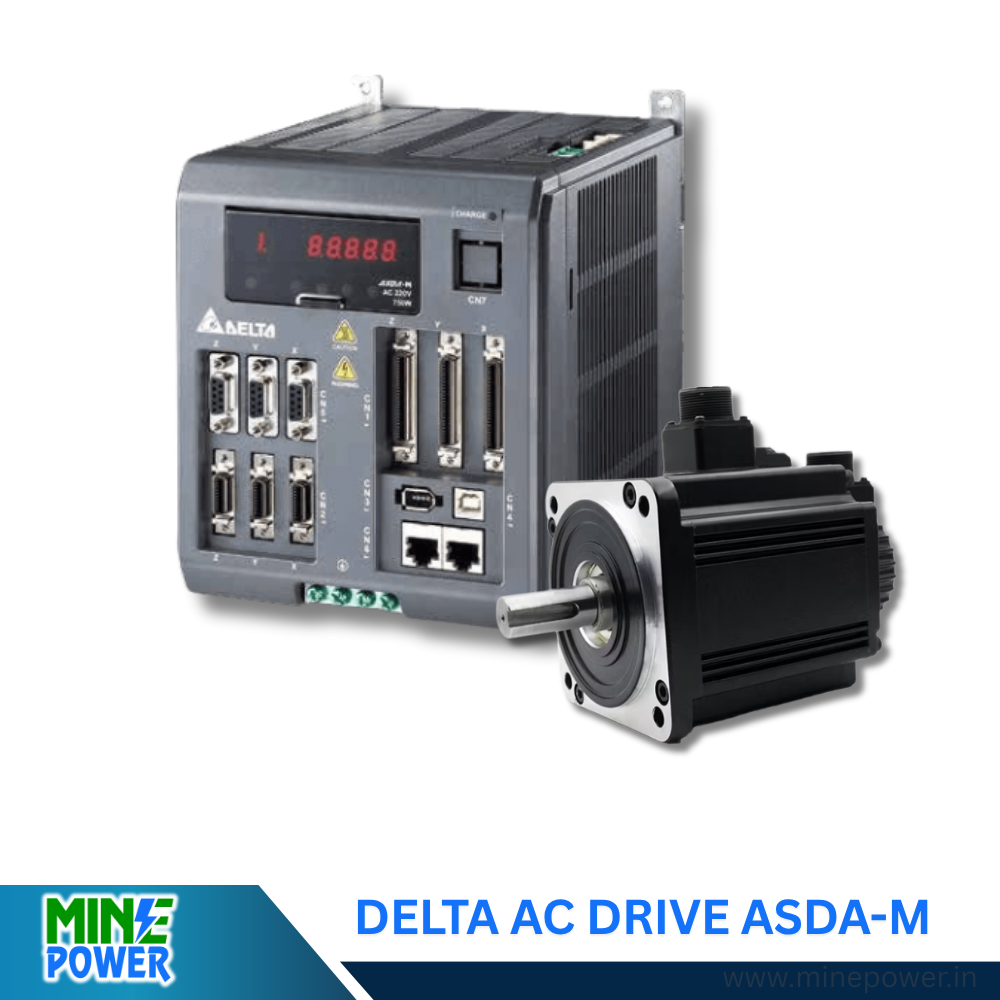

Delta ASDA-M Series AC Servo Drive
Triple-Axis Precision. Synchronized Performance. Industrial Reliability.
The Delta ASDA-M Series is a highly integrated multi-axis servo drive system designed to meet the growing demands of advanced industrial automation. Featuring three-axis servo drives in one compact frame, it enables real-time synchronization, multi-axis interpolation, and precise gantry control—delivering unmatched efficiency and precision for industries across Coimbatore and Tamil Nadu.
Technical Specifications
| Specification | Details |
|---|---|
| Motor Power Range | 0.4 kW to several kW per axis (model-dependent) |
| Number of Axes | 3-axis integrated servo drives in one compact frame |
| Control Modes | Position, Speed, Torque, Electronic Cam (E-CAM), Full-closed loop control |
| Communication | DMCNET, CANopen, RS-485 |
| Max Input Pulse Frequency | 500 Kpps (standard), 4 Mpps line driver, 200 Kpps open collector |
| Speed Control Range | Up to 1:5000 |
| Bandwidth | 3.1 kHz |
| Built-in Functions | Motion control, PLC functionality, real-time capture & compare, vibration suppression, auto notch filter |
| Safety Features | STO (Safe Torque Off), over-current, over-voltage, and overload protection |
| Cooling System | Fan cooling |
| IP Rating | IP20 |
| Operating Temperature | -20°C to +65°C |
| Applications | Robotics, CNC, Packaging machinery, Gantry robots, Textiles, Industrial automation systems |
Key Advantages
-
Triple-Axis Integration: Three servo drives in one frame provide synchronized multi-axis motion control, reducing wiring and cabinet space.
-
High-Speed Precision: 3.1 kHz bandwidth enables ultra-fast response and high-accuracy positioning under dynamic load conditions.
-
Advanced Gantry & E-CAM Control: Supports linear, arc, and helical interpolation, perfect for complex machine coordination.
-
Smooth & Stable Operation: Built-in vibration suppression and notch filters minimize resonance and enhance machine life.
-
Energy Efficiency: DC bus energy-sharing reduces overall power loss and boosts system efficiency.
-
Versatile Connectivity: Compatible with DMCNET, CANopen, and RS-485 for seamless integration with PLCs and motion controllers.
-
Built-in PLC Functionality: Simplifies system design by reducing external controller requirements.
-
Enhanced Safety: Includes Safe Torque Off (STO) and comprehensive fault protection for secure operation.
-
Compact Design: Fan-cooled, space-saving form factor ideal for high-density control cabinets.
Applications Across Tamil Nadu Industry
Perfectly suited for:
-
Robotics and Gantry Systems
-
CNC and Machine Tools
-
Packaging Automation
-
Textile and Printing Machines
-
Material Handling and Assembly Lines
Revolutionize your automation with the Delta ASDA-M Series AC Servo Drive — Coimbatore’s multi-axis motion control solution.
Designed for triple-axis synchronization, precision gantry operation, and energy-efficient performance, the ASDA-M delivers industrial-grade reliability for CNC, robotics, and packaging applications across Tamil Nadu.For authentic Delta automation products, expert support, and customized solutions, choose Mine Power — your trusted automation partner in Coimbatore.
