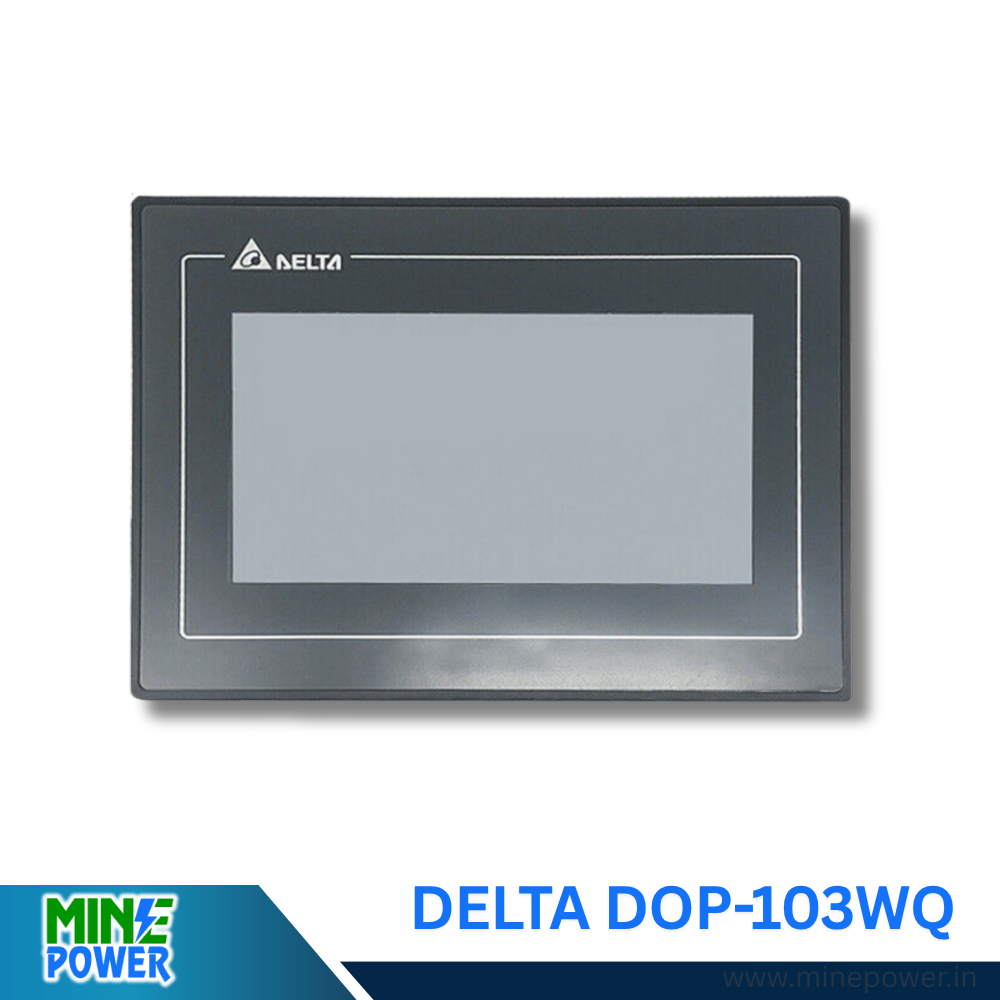

Delta HMI DOP-103WQ – 10.1” Compact Touchscreen for Smart Industrial Automation
Optimize your automation control systems with the Delta HMI DOP-103WQ, now available at Mine Power for industries across Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
This compact 10.1-inch Human Machine Interface combines clear visualization, efficient performance, and versatile connectivity — perfect for modern factory automation and process monitoring applications.
Product Overview
The Delta DOP-103WQ features a 10.1″ TFT LCD wide display with a 1024 × 600 pixel resolution and 24-bit true color depth, providing bright and sharp visuals.
Powered by a 400 MHz Cortex-A8 processor with 128 MB SDRAM and 64 MB Flash memory, it delivers fast, stable, and reliable performance for industrial HMI operations.
Connectivity options include one 10/100 Mbps Ethernet port, two serial COM ports (RS-232/RS-422/RS-485), and one USB Host interface for easy communication and data transfer.
It supports multiple industrial communication protocols including Modbus TCP, Modbus RTU, and Ethernet/IP, enabling seamless integration with PLCs and other control devices.
Technical Specifications
| Specification | Details |
|---|---|
| Display | 10.1″ TFT LCD, 1024 × 600 pixels, 24-bit true color |
| Processor | Cortex-A8, 400 MHz |
| Memory | 128 MB SDRAM, 64 MB Flash |
| Touch Panel | Four-wire resistive touchscreen (>10 million operations) |
| Ethernet | 1 port, 10/100 Mbps |
| Serial Ports | 2 ports (RS-232 / RS-422 / RS-485) |
| USB | 1 USB Host |
| Built-in RTC | Yes |
| Power Supply | 24 V DC ±15% |
| Operating Temperature | 0°C – 50°C |
| Humidity | 10%–90% RH (0–40°C), 10%–55% RH (40–50°C) |
| Protection Rating | IP65 (front panel) |
| Dimensions | 273.2 × 176.3 × 42.4 mm |
| Weight | Approx. 1 kg |
| Multimedia | Supports image and audio playback with event triggers |
| Supported Protocols | Modbus TCP, Modbus RTU, Ethernet/IP, OPC-UA |
Key Features & Advantages
✅ Bright and Clear 10.1” Display – High-resolution widescreen provides precise monitoring and control visualization.
✅ Efficient Processing Power – Cortex-A8 CPU ensures smooth operation of complex automation graphics and data screens.
✅ Versatile Communication – Ethernet and dual COM ports for flexible connection with Delta PLCs and industrial networks.
✅ Durable Touchscreen – Four-wire resistive design supports millions of reliable operations.
✅ Rugged Industrial Design – IP65-rated front panel ensures resistance against dust and water ingress.
✅ Enhanced Multimedia Functionality – Image and audio playback enriches alarm alerts and operator experience.
✅ Energy-Efficient Operation – Designed for continuous industrial performance with low power consumption.
Applications
-
Packaging and Conveyor Automation
-
Manufacturing and Process Control
-
Textile and Printing Machinery
-
Food and Beverage Industry
-
Industrial Monitoring Systems
“Boost your factory automation performance with the Delta HMI DOP-103WQ, available through Mine Power in Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
Featuring a 10.1-inch wide QVGA touchscreen, Cortex-A8 processor, and Ethernet + RS-232/485 communication, this compact HMI ensures clear visualization and seamless control.
With IP65-rated durability and multimedia support, the DOP-103WQ is ideal for automation in textile, packaging, and manufacturing industries.
Trust Mine Power for authentic Delta HMI solutions that enhance productivity and reliability across South India.”
