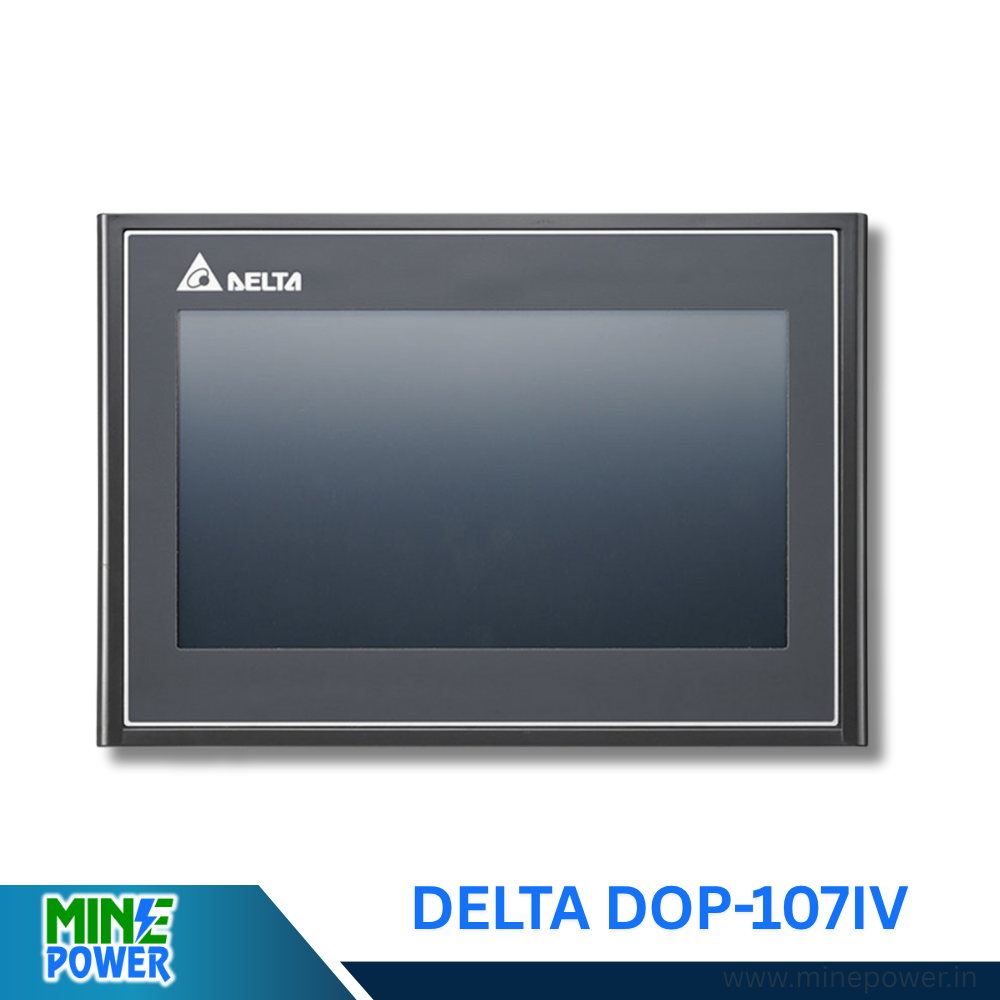

Delta HMI DOP-107IV – Compact 7″ Industrial Touchscreen HMI
Available at Mine Power India—Authorized Automation and Control Panel Supplier in Coimbatore, Hosur, Salem, Tamil Nadu & Kerala
Product Overview
The Delta DOP-107IV HMI is a compact yet powerful human-machine interface designed for precise process control and smooth industrial automation. Its 7-inch TFT LCD touchscreen (800 × 480 resolution, 16-bit color) offers clear, vibrant visuals for intuitive monitoring and operation.
Powered by an ARM Cortex-A8 800 MHz processor with 256 MB RAM and 256 MB Flash memory, it delivers fast response times and stable multitasking performance in demanding environments. The durable four-wire resistive touch panel supports over 10 million presses, ensuring long life in heavy-duty applications.
Connectivity is seamless with Ethernet (10/100 Mbps), three serial COM ports (RS-232/RS-422/RS-485), USB Host and Slave ports, and an SD card slot for easy data transfer and program updates. The IP65-rated front panel ensures protection from dust and moisture, making it ideal for rugged industrial use.
Technical Specifications
| Specification | Details |
|---|---|
| Display Size & Resolution | 7″ TFT LCD, 800 × 480 pixels, 16-bit color |
| Processor | ARM Cortex-A8, 800 MHz |
| Memory | 256 MB RAM / 256 MB Flash ROM |
| Touch Panel | 4-wire resistive, >10 million presses |
| Ethernet | 1 port, 10/100 Mbps auto-sensing |
| Serial Ports | 3 ports (RS-232, RS-422, RS-485) |
| USB | 1 USB Host v2.0, 1 USB Slave v2.0 |
| SD Card Slot | Yes |
| Buzzer | Multi-tone, up to 80 dB |
| Real-Time Clock (RTC) | Built-in |
| Power Supply | 24 V DC (±15%) |
| Power Consumption | Max. 12 W |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10–90% RH (0–40°C), 10–55% RH (41–50°C) |
| Protection Rating | IP65 (front panel) |
| Dimensions | 215 × 161 × 61.2 mm |
| Weight | Approx. 970 g |
| Compliance | CE, IEC 61131-2 / IEC 60068-2 shock & vibration |
Key Advantages
-
Compact, Durable Design: 7″ bright widescreen HMI with long-life touch performance
-
High-Speed Processor: ARM Cortex-A8 ensures smooth and responsive operations
-
Flexible Communication: Ethernet, 3 COM ports, USB, and SD card for versatile integration
-
Industrial-Grade Protection: IP65-rated front panel resists dust and water ingress
-
Easy Mounting & Expansion: Slim, DIN rail compatible with SD card support
-
Energy Efficient: Low power consumption (max. 12 W) saves operational cost
-
Trusted by OEMs & Integrators: Widely used in automation panels across South India
