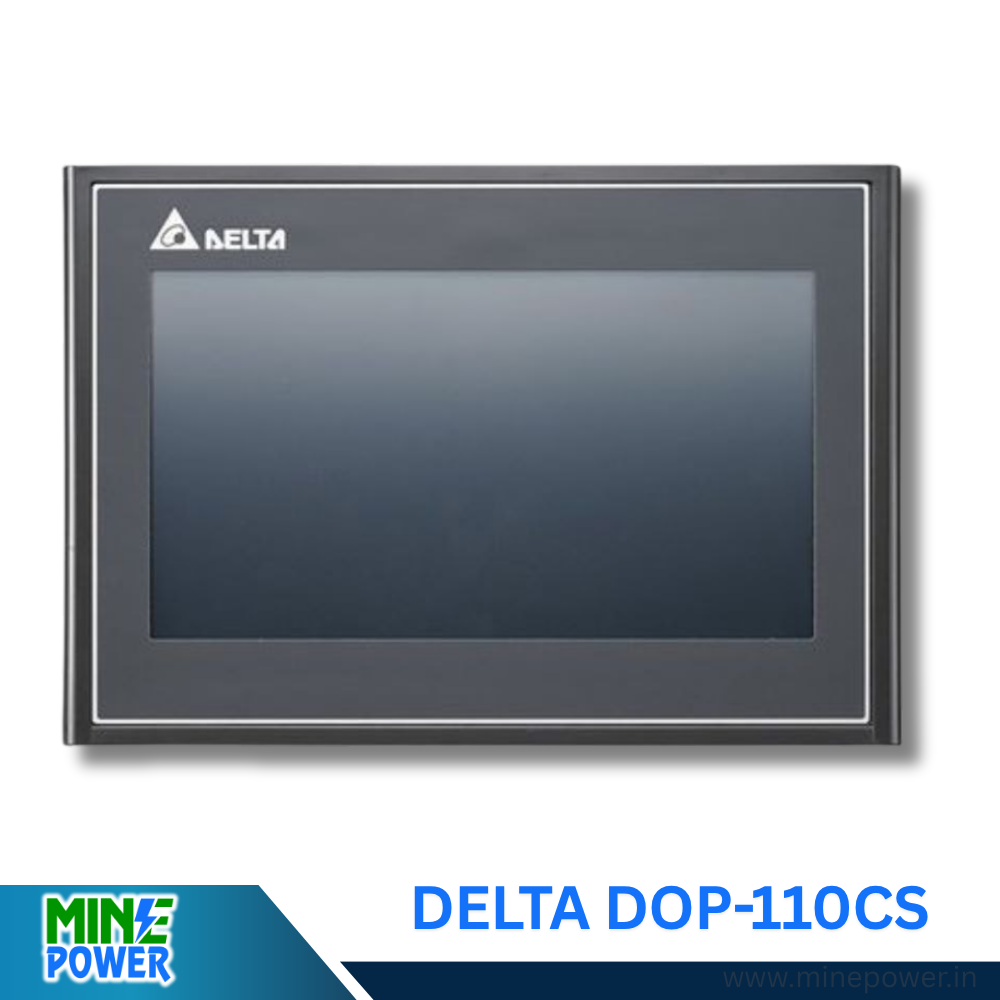

Delta HMI DOP-110CS – 10.1″ Wide Touchscreen Human Machine Interface
The Delta HMI DOP-110CS is a high-performance and compact Human Machine Interface (HMI) designed to meet the demands of modern industrial automation systems across Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala. Featuring a vivid 10.1-inch widescreen display, advanced processing power, and versatile connectivity, this model is ideal for automation dealers and end-users looking for reliable and efficient operator interfaces.
Product Overview
The DOP-110CS comes equipped with a 10.1″ TFT wide-color LCD boasting a 1024 × 600 resolution and 16-bit color depth, delivering clear and vibrant visuals for precise control and monitoring.
Powered by an ARM Cortex-A8 400 MHz processor, 128 MB SDRAM, and 64 MB Flash memory, it ensures smooth operation and fast response times.
Its durable four-wire resistive touchscreen, rated for over 10 million touches, guarantees long-lasting performance even in demanding environments.
Connectivity options include:
-
1 Ethernet port (10/100 Mbps)
-
2 Serial COM ports (RS-232/422/485)
-
USB Host and Slave ports
-
SD Card slot
The DOP-110CS supports major industrial communication protocols such as Modbus TCP/RTU and Ethernet/IP, enabling seamless integration with PLCs, drives, and controllers.
Full Technical Specifications
| Specification | Details |
|---|---|
| Display Size & Resolution | 10.1″ TFT LCD, 1024 × 600 pixels, 16-bit color |
| Processor | ARM Cortex-A8 400 MHz |
| RAM | 128 MB SDRAM |
| Flash Memory | 64 MB Flash ROM |
| Touch Panel | Four-wire resistive touchscreen, >10 million touches |
| Ethernet | 1 port, 10/100 Mbps |
| Serial COM Ports | 2 ports (RS-232, RS-422, RS-485) |
| USB Ports | USB Host and USB Slave |
| SD Card Slot | Yes |
| Power Supply | 24 V DC ± 15% |
| Operating Temperature | 0°C to 50°C |
| Humidity | 10%-90% RH (0-40°C), 10%-55% RH (40-50°C) |
| Protection Rating | IP65 (front panel) |
| Dimensions | 273.2 × 176 × 42 mm |
| Weight | Approx. 1 kg |
Key Advantages
✅ Vibrant Display: Large 10.1-inch widescreen display with 16-bit color offers sharp and clear visualization for real-time monitoring.
✅ Durable Touchscreen: Four-wire resistive panel rated for 10 million operations ensures long life in industrial use.
✅ Flexible Communication: Ethernet, serial, USB, and SD interfaces enable smooth integration with multiple controllers.
✅ Industrial Protection: IP65-rated front panel safeguards against dust and water exposure.
✅ Energy Efficient: Designed for minimal power consumption and continuous operation.
✅ Versatile Applications: Widely used in packaging, textiles, food processing, and pharmaceutical automation sectors across Tamil Nadu and Kerala.
“Upgrade your industrial automation systems with the Delta HMI DOP-110CS, available at Mine Power — your trusted Delta distributor in Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala. Featuring a vibrant 10.1-inch touchscreen, powerful ARM Cortex-A8 processor, and multiple connectivity options including Ethernet and serial ports, this HMI ensures seamless control and real-time performance. Its IP65-rated durable design makes it ideal for industries like packaging, textiles, and food processing. Choose Mine Power for authentic Delta HMI solutions built for South India’s manufacturing excellence.”
