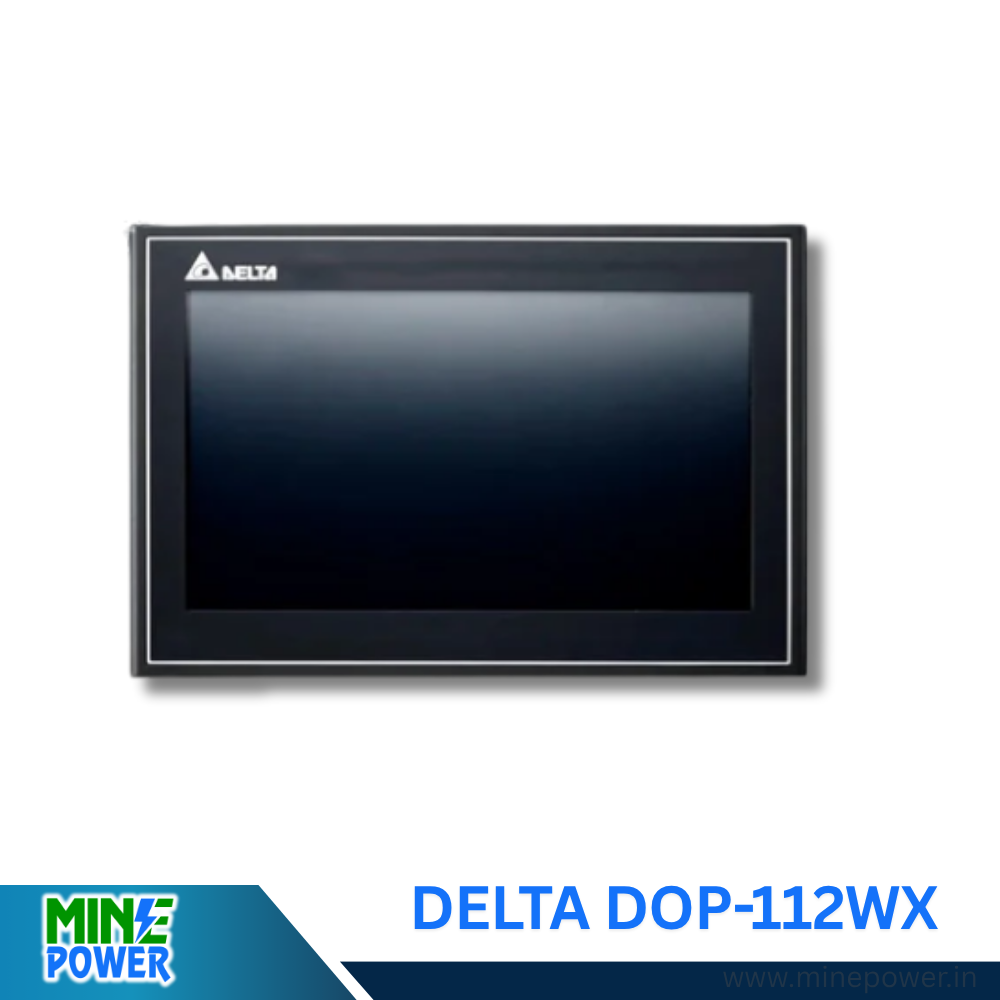

Delta HMI DOP-112WX – 12.1” Multi-Touch HMI for Advanced Industrial Automation
The Delta HMI DOP-112WX is a powerful and reliable Human Machine Interface (HMI) designed for seamless industrial automation, process visualization, and operator control across Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
With its large 12.1-inch capacitive multi-touch display, dual Ethernet connectivity, and industrial-grade protection, it provides high performance and intuitive control for demanding automation environments.
Product Overview
The DOP-112WX features a 12.1” TFT LCD with 1024 × 768 pixel resolution and 24-bit true color, delivering bright, clear, and accurate visuals even in challenging factory conditions.
Powered by a 400 MHz Cortex-A8 processor with 128 MB SDRAM and 128 MB Flash memory, it offers smooth multitasking and quick response for complex automation operations.
Its capacitive multi-touch screen, rated for over 50 million touch operations, provides a durable and responsive user experience.
With dual 10/100 Mbps Ethernet ports, four serial COM ports (RS-232/422/485), USB Host/Slave ports, and an SD card slot, it offers exceptional communication flexibility.
Supporting Modbus TCP/RTU, EtherNet/IP, and OPC-UA protocols, this HMI ensures compatibility with a wide range of industrial controllers and systems.
Built-in multimedia functions such as video playback, IP camera streaming, and multi-window display further enhance visualization and operator awareness.
Full Technical Specifications
| Specification | Details |
|---|---|
| Display | 12.1″ TFT LCD, 1024 × 768 pixels, 24-bit true color |
| Processor | Cortex-A8, 400 MHz |
| RAM | 128 MB SDRAM |
| Flash Memory | 128 MB Flash ROM |
| Touch Panel | Capacitive multi-touch, >50 million operations |
| Ethernet | 2 ports, 10/100 Mbps |
| Serial Ports | 4 (RS-232 / RS-422 / RS-485) |
| USB Ports | USB Host & USB Slave |
| SD Card Slot | Yes |
| Power Supply | 24 V DC ± 15% |
| Operating Temperature | 0°C to 50°C |
| Humidity | 10%–90% RH (0–40°C), 10%–55% RH (40–50°C) |
| Protection Rating | IP65 / NEMA4 / UL Type 4X (front panel) |
| Dimensions (W×H×D) | 320 × 230 × 50 mm |
| Weight | Approx. 2.3 kg |
| Multimedia Functions | IP camera, video playback, multi-window display |
| Supported Protocols | Modbus TCP, Modbus RTU, EtherNet/IP, OPC-UA |
Key Advantages
✅ Large & Vivid Display – 12.1” widescreen with 1024×768 resolution ensures high-clarity visualization for operators and engineers.
✅ Responsive Multi-Touch Control – Capacitive touch panel supports fluid and accurate gesture control for efficient operation.
✅ Dual Ethernet + 4 Serial Ports – Extensive connectivity options allow integration with multiple PLCs and field devices simultaneously.
✅ Multimedia & IP Camera Support – Real-time video monitoring and playback improve machine visibility and maintenance efficiency.
✅ Industrial-Grade Protection – IP65 front panel design ensures resistance to dust, water, and vibration for harsh factory environments.
✅ Durable & Reliable – Designed for long-term performance, capable of handling 50+ million touch operations.
✅ Wide Application Range – Ideal for process automation, packaging, pharmaceutical, textile, and manufacturing industries in South India.
Applications
-
Industrial Process Control Systems
-
Packaging & Labeling Machines
-
Pharmaceutical Manufacturing Lines
-
Textile Automation Systems
-
Food & Beverage Production Lines
-
Machine Tool and Equipment Monitoring
“Upgrade your automation control systems with the Delta HMI DOP-112WX, available at Mine Power for industries in Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
Featuring a vivid 12.1-inch multi-touch display, dual Ethernet ports, and advanced multimedia capabilities, this robust HMI ensures seamless communication and real-time visualization.
Its IP65-rated front panel, powerful Cortex-A8 processor, and support for Modbus, Ethernet/IP, and OPC-UA make it ideal for modern automation environments.
Choose Mine Power for authentic Delta HMI solutions engineered for high performance, reliability, and efficiency across South India’s industries.”
