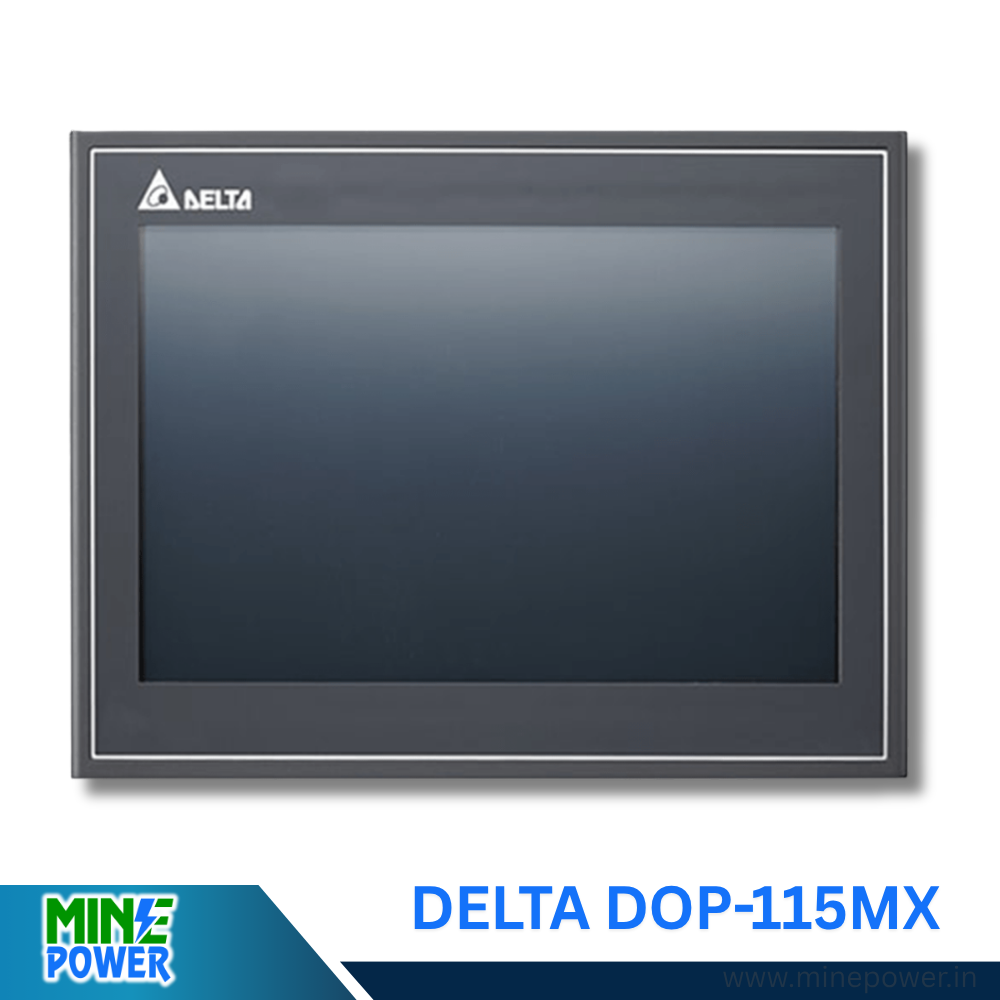

Delta HMI DOP-115MX – 15” Industrial Touchscreen for Advanced Automation
Empower your automation systems with the Delta DOP-115MX HMI, available at Mine Power, serving Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
This high-performance 15-inch HMI is designed for large-scale industrial applications, offering a brilliant display, lightning-fast processing, and wide connectivity options — ideal for monitoring, control, and visualization in smart factories.
Product Overview
The DOP-115MX features a 15″ TFT LCD with a 1024 × 768 resolution and 24-bit true color, ensuring vivid process visualization.
Powered by a Dual Core Cortex-A7 1 GHz processor, 1 GB DDR3 RAM, and 8 GB Flash storage, it delivers smooth operation and fast graphical performance.
It supports multiple communication ports — including dual Ethernet, four COM ports (RS-232/422/485), USB host/slave, and SD card storage.
Enhanced with multimedia functions, IP camera support, and multi-window display, the DOP-115MX gives operators a powerful and interactive interface for modern industrial automation.
Technical Specifications
| Specification | Details |
|---|---|
| Display | 15″ TFT LCD, 1024 × 768 pixels, 24-bit color |
| Processor | Dual Core Cortex-A7, 1 GHz |
| Memory | 1 GB DDR3 RAM, 8 GB Flash Storage |
| Touch Panel | Four-wire resistive touchscreen (>10 million operations) |
| Ethernet | 2 ports (10/100 Mbps auto-sensing) |
| Serial COM Ports | 4 (RS-232 / RS-422 / RS-485) |
| USB Ports | 1 Mini USB Slave v2.0; 1 USB Host v2.0 |
| SD Card Slot | Yes |
| Protection Class | IP65 / NEMA4 / UL Type 4X (front panel) |
| Power Supply | 24 V DC ±15% (Class 2 / SELV) |
| Operating Temperature | 0°C – 50°C |
| Dimensions | 385.2 × 294.3 × 52.7 mm |
| Weight | Approx. 3.09 kg |
| Multimedia | IP camera, VGA input, video playback, multi-window display |
| Certification | CE, UL (compliant with shielded Ethernet cables) |
Key Features & Advantages
✅ Large 15” High-Resolution Display – Sharp and clear process visualization for enhanced user interaction.
✅ High-Speed Dual-Core Processor – Handles multitasking and graphic rendering with ease.
✅ Comprehensive Connectivity – Dual Ethernet, multiple serial COM ports, USB, and SD card support.
✅ Advanced Multimedia Capabilities – Supports video, IP camera monitoring, and multiple display windows.
✅ Industrial-Grade Protection – IP65 front panel ensures resistance to dust, moisture, and harsh environments.
✅ User-Friendly Touchscreen – Reliable four-wire resistive touchscreen rated for over 10 million operations.
✅ Energy-Efficient Design – Natural air-cooling and low-power operation for continuous 24/7 use.
Applications
Perfect for:
-
Packaging & Conveyor Systems
-
Manufacturing & Process Automation
-
Textile & Printing Machinery
-
Pharmaceutical & Food Processing Units
-
SCADA and Plant Monitoring Systems
“Experience the power of advanced automation with Delta HMI DOP-115MX, available through Mine Power in Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
Featuring a 15-inch high-definition display, dual-core processor, and multiple communication interfaces, the DOP-115MX delivers superior performance for industrial control. With IP65 protection, IP camera support, and multimedia visualization, it’s the perfect solution for high-demand industrial environments.
Trust Mine Power for authentic Delta HMI products designed to enhance efficiency, reliability, and connectivity across South India.”
