Description

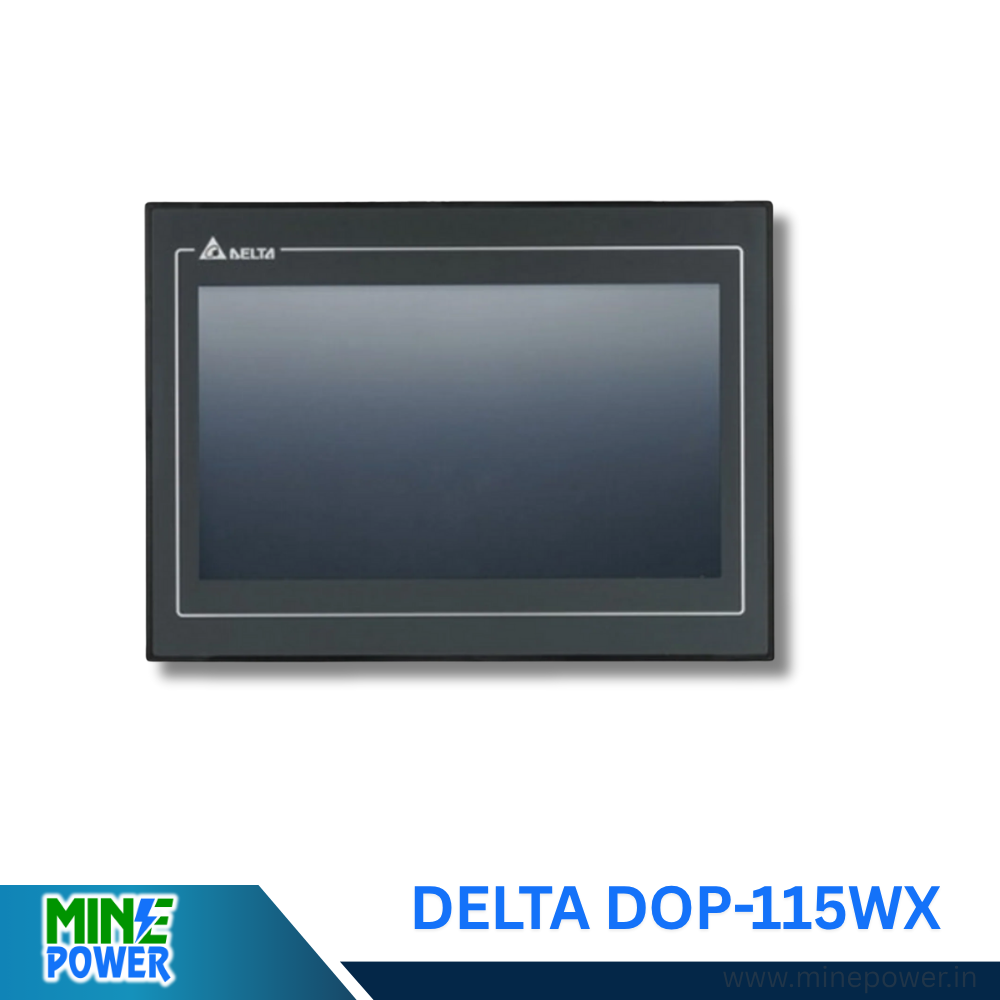

Delta HMI DOP-115WX – 15″ Multi-Touch HMI for Advanced Industrial Automation
The Delta HMI DOP-115WX is a powerful and intelligent Human Machine Interface (HMI) designed to enhance industrial automation performance across Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
With a 15-inch high-definition capacitive multi-touch screen, dual-core processing power, and advanced multimedia features, it delivers an exceptional control experience for modern manufacturing and process industries.
Product Overview
The DOP-115WX features a 15″ TFT LCD widescreen with 1024 × 768 resolution and 24-bit color depth, offering bright, detailed, and accurate visualization for complex industrial processes.
Powered by a Dual-Core Cortex-A7 1 GHz processor, 1 GB DDR3 RAM, and 8 GB Flash ROM, this HMI ensures rapid data processing, smooth graphics, and responsive performance even in demanding environments.
Its capacitive multi-touch screen, rated for over 50 million operations, provides high accuracy and durability.
The interface supports dual 10/100 Mbps Ethernet ports, four serial COM ports (RS-232, RS-422, RS-485), USB host and slave ports, and an SD card slot for versatile communication and data storage.
Supporting industrial protocols such as Modbus TCP, Modbus RTU, EtherNet/IP, and OPC-UA, the DOP-115WX integrates seamlessly with modern automation networks.
Built-in multimedia functions, including IP camera streaming, VGA input, and video playback, make it ideal for real-time process monitoring and control.
Full Technical Specifications
| Specification | Details |
|---|---|
| Display Size & Resolution | 15″ TFT LCD, 1024 × 768 pixels, 24-bit true color |
| Processor | Dual Core Cortex-A7, 1 GHz |
| RAM | 1 GB DDR3 |
| Flash Memory | 8 GB Flash ROM |
| Touch Panel | Capacitive multi-touch, >50 million touches |
| Ethernet | 2 ports, 10/100 Mbps |
| Serial Ports | 4 (RS-232 / RS-422 / RS-485) |
| USB Ports | USB Host & USB Slave |
| SD Card Slot | Yes |
| Built-in RTC | Yes |
| Buzzer | Multi-tone, 85 dB |
| Cooling | Natural air circulation |
| Protection Rating | IP65 / NEMA4 / UL Type 4X (front panel) |
| Operating Voltage | 24 V DC ± 15% |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10%–90% RH (0–40°C), 10%–55% RH (41–50°C) |
| Dimensions (W×H×D) | 385.2 × 294.3 × 52.7 mm |
| Weight | Approx. 3.09 kg |
| Multimedia Functions | IP camera, VGA input, video playback, multi-window display |
| Supported Protocols | Modbus TCP, Modbus RTU, EtherNet/IP, OPC-UA |
Key Advantages
✅ Large HD Display – 15-inch widescreen with crisp 1024×768 resolution ensures clear visualization of industrial operations.
✅ High-Speed Dual-Core Processor – Ensures fast data handling and smooth operation even in complex automation systems.
✅ Advanced Connectivity – Dual Ethernet, multiple COM ports, USB, and SD card slots allow flexible integration with PLCs and networks.
✅ Multimedia & Camera Support – Enables IP camera monitoring, video playback, and real-time visualization for effective process control.
✅ Durable Industrial Design – IP65-rated front panel offers strong protection against dust, moisture, and vibration.
✅ Precision Multi-Touch Control – Supports 50+ million operations with high accuracy and reliability.
✅ Versatile Applications – Suitable for manufacturing, packaging, food processing, textile, and pharmaceutical automation in South India.
Applications
-
Machine & Process Automation
-
Packaging and Conveyor Systems
-
Food & Beverage Production
-
Textile and Dyeing Plants
-
Pharmaceutical Equipment Control
-
Industrial Monitoring and SCADA Systems
“Enhance your automation control with the Delta HMI DOP-115WX, available at Mine Power for industries in Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
Featuring a vibrant 15-inch capacitive multi-touch display, dual-core 1 GHz processor, and extensive connectivity options including Ethernet, serial, USB, and SD card, this HMI delivers seamless and responsive control.
With IP65 industrial protection, multimedia support, and IP camera streaming, the DOP-115WX provides reliable and efficient performance in demanding automation environments.
Trust Mine Power for genuine Delta HMI solutions engineered for durability, precision, and productivity across South India’s industries.”
