Description

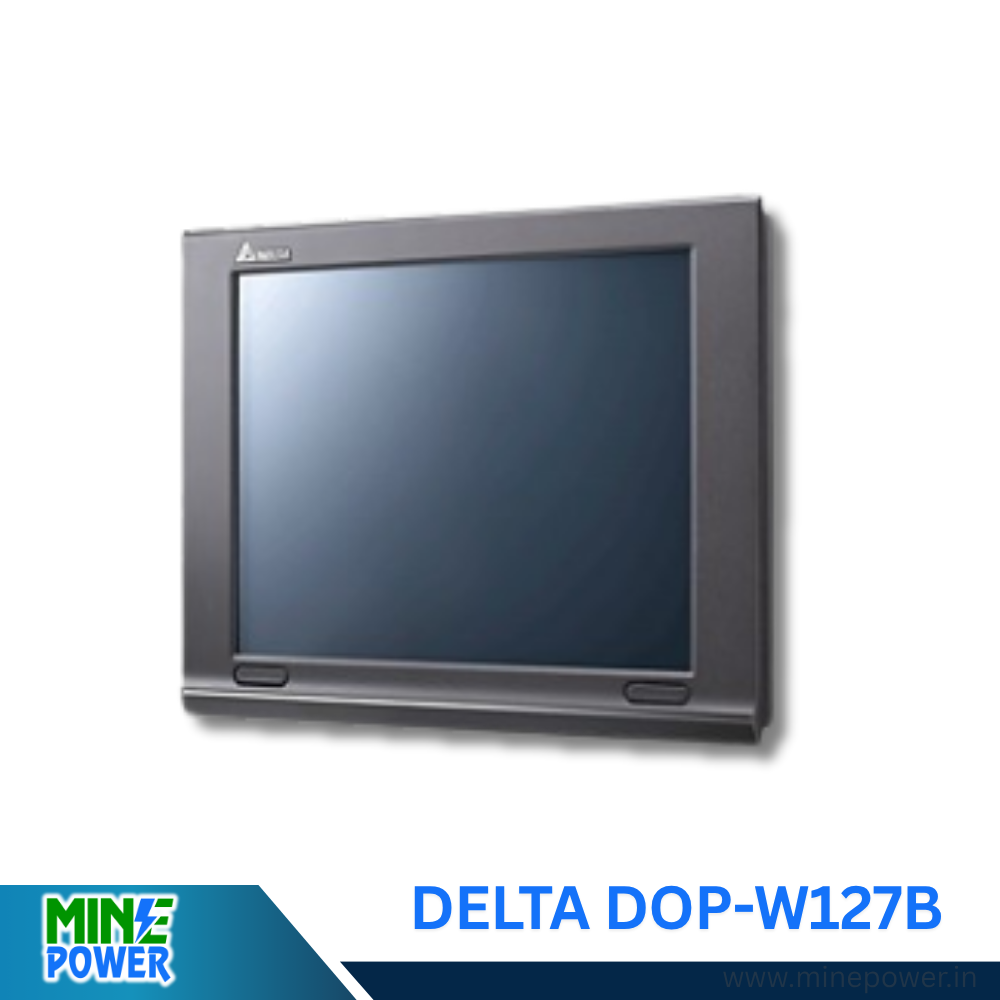

Delta HMI DOP-W127B – 12.1” High-Performance Wide-Screen HMI
The Delta HMI DOP-W127B is a high-performance Human Machine Interface engineered for efficient control and monitoring in industrial automation environments. Designed for dealers and industries across Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala, this advanced operator panel combines a large widescreen display, powerful processor, and versatile connectivity options to meet the demands of modern industrial applications.
Product Overview
The DOP-W127B features a 12.1-inch TFT LCD widescreen with 800 × 600 resolution and 16-bit true color, delivering sharp and vivid process visualization.
Powered by an ARM Cortex-A8 400 MHz processor with 128 MB SDRAM and 64 MB Flash memory, it ensures fast response and stable performance, even for complex automation systems.
Its four-wire resistive touchscreen, rated for over 10 million touches, offers precise operation and long service life. Connectivity options include Ethernet (10/100 Mbps), two serial COM ports (RS-232/RS-422/RS-485), USB host and slave ports, and an SD card slot for data transfer and program management.
The DOP-W127B supports leading industrial protocols such as Modbus TCP/RTU, Ethernet/IP, and OPC-UA, making it ideal for seamless integration with PLCs and industrial networks.
Full Technical Specifications
| Specification | Details |
|---|---|
| Display Size & Resolution | 12.1″ TFT LCD, 800 × 600 pixels, 16-bit true color |
| Processor | ARM Cortex-A8 400 MHz |
| RAM | 128 MB SDRAM |
| Flash Memory | 64 MB Flash ROM |
| Touch Panel | Four-wire resistive touchscreen, >10 million touches |
| Ethernet | 1 port, 10/100 Mbps |
| Serial COM Ports | 2 ports (RS-232, RS-422, RS-485) |
| USB Ports | USB Host and USB Slave |
| SD Card Slot | Yes |
| Power Supply | 24 V DC ±15% |
| Operating Temperature | 0°C to 50°C |
| Humidity | 10%–90% RH (0–40°C), 10%–55% RH (40–50°C) |
| Protection Rating | IP65 front panel |
| Dimensions (W × H × D) | 320 × 230 × 42 mm |
| Weight | Approx. 1.6 kg |
Key Advantages
-
Large and Clear Display: 12.1-inch widescreen with 16-bit true color for crisp and vivid visualization.
-
High Durability: Four-wire resistive touchscreen rated for over 10 million operations.
-
Versatile Communication: Ethernet, RS-232/422/485, USB, and SD card connectivity for flexible integration.
-
Industrial Protection: IP65-rated front panel resists dust and water ingress.
-
Powerful Performance: ARM Cortex-A8 processor ensures smooth control of complex automation systems.
-
Wide Industry Use: Ideal for textiles, packaging, food processing, and pharmaceutical sectors in Tamil Nadu and Kerala.
Boost your industrial automation efficiency with the Delta HMI DOP-W127B, available from Mine Power for dealers and industries across Coimbatore, Hosur, Salem, Tamil Nadu, and Kerala.
This 12.1-inch widescreen HMI delivers superior visualization, powered by a 400 MHz ARM Cortex-A8 processor, 128 MB RAM, and multiple connectivity options including Ethernet and serial ports.
With IP65-rated rugged design, USB and SD card support, and compatibility with Modbus, Ethernet/IP, and OPC-UA, the DOP-W127B provides reliable performance in demanding industrial environments.
Trust Mine Power for genuine Delta HMI solutions built for South India’s automation and process control needs.
