Description

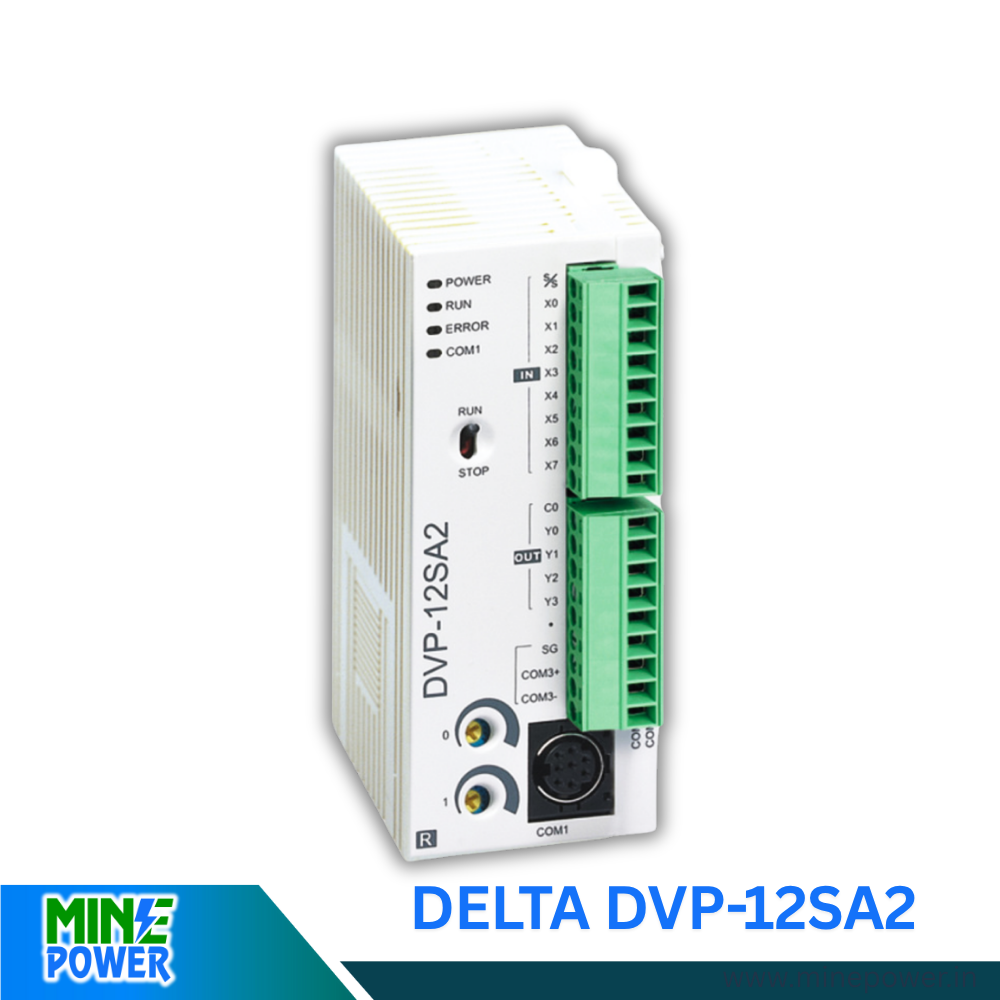

The Delta DVP12SA PLC is a slim, high-performance programmable logic controller designed for compact automation systems, particularly in the SA2 series. It features a 32-bit CPU for fast processing and supports high-speed pulse outputs suitable for motion control and other demanding industrial tasks
Key Features
-
Offers 12 MPU points (8 digital inputs + 4 digital outputs), extendable for larger systems by adding PLC extension modules to meet the requirements of scalable factory automation equipment.
-
Program capacity of 16k steps, allowing for complex control routines commonly used in PLC programming and integration for precision processes.
-
High-speed pulse output: 2 points at 100kHz and 2 points at 10kHz are independently available, providing fast and precise control of stepper or servo motor control applications.
-
Built-in high-speed counters support advanced timing and counting applications essential for industrial control and monitoring.
-
Communications: Includes 1 RS-232 and 2 RS-485 ports, supporting Modbus ASCII/RTU and PLC Link functionality, allowing seamless communication protocols in power automation systems.
-
Execution speed for basic instructions is 0.35μs, ensuring rapid logic processing and efficient PLC and SCADA automation.
-
Max I/O extension capability up to 492 points for system scalability in various industrial automation projects.
-
No battery is required for data retention; the built-in real-time clock operates for up to 15 days after power loss, supporting uninterrupted automation communication protocols.
Typical Applications
-
Commonly used in compact automation solutions for machines such as printing equipment, container filling stations, production line monitoring, and systems requiring rapid logic operations and control flexibility—ideal for both small and medium automation control projects.
-
Well-suited for integration with Delta AC drives, HMIs, and servo controllers through built-in protocols, offering comprehensive support for smart manufacturing.
-
The DVP12SA is recognized for reliability, high-speed operation, and flexibility in small-to-medium industrial automation projects, making it perfect for businesses looking to upgrade their automation infrastructure.
The Delta DVP12SA and DVP12SA2 are both slim PLCs, but the DVP12SA2 is a second-generation model with notable enhancements over the original DVP12SA. Below is a comparison highlighting the main differences:
| Feature | DVP12SA | DVP12SA2 |
|---|---|---|
| Program Capacity | 8k steps | 16k steps |
| Max. I/O Extension | 236 points | 492 points |
| High-Speed Pulse Output | 2 points: 50kHz & 10kHz | 2 points: 100kHz & 10kHz |
| Data Register | 5k words | 10k words |
| CPU | 32-bit | 32-bit |
| Communication Ports | 1 RS-232, 1 RS-485 | 1 RS-232, 2 RS-485 |
| Execution Speed | 0.35 μs | 0.35 μs |
| RTC Feature | External battery | Built-in; runs 15 days w/o power |
| Output Methods | Relay or Transistor | Relay or Transistor |
| Module Compatibility | DVP-S extension modules | DVP-S series modules |
Main Takeaways
-
DVP12SA2 offers double the program capacity and I/O extension, plus more advanced pulse output and built-in RTC functions not available in the DVP12SA.
-
DVP12SA2 is more suitable for increasingly complex automation systems, while the basic DVP12SA fits simpler or legacy uses.
