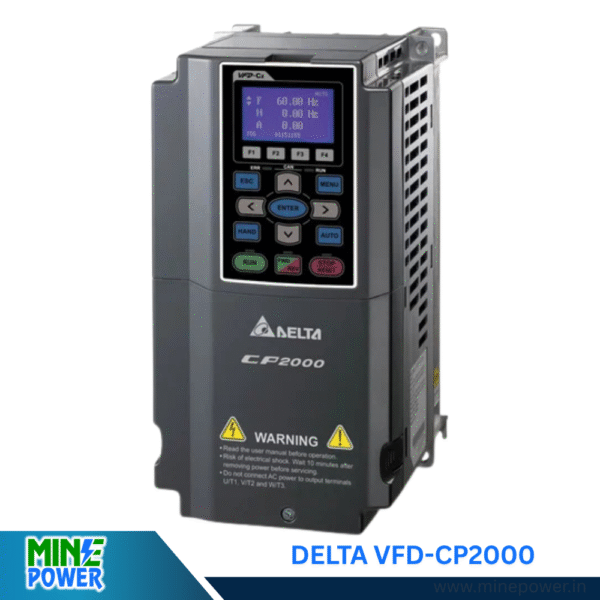

Delta VFD CP2000 Series – Energy-Efficient Vector Control Drive for HVAC and Pumping Systems
The Delta VFD CP2000 Series is a high-performance, sensorless vector control AC drive engineered for variable torque applications such as pumps, fans, air blowers, and HVAC systems. It combines intelligent PID control with energy-saving algorithms and modular expandability—delivering efficient, reliable, and flexible performance for industrial and building automation projects across Coimbatore, Tamil Nadu.
Full Technical Specifications
-
Power Range: 0.55 kW (0.75 HP) to 300 kW (400 HP)
-
Input Voltage: 3-phase, 380–480V ±15%, 47–63 Hz
-
Output Frequency: 0–600Hz for precise speed and torque regulation
-
Control Method: Sensorless Vector Control (SVC) for smooth, efficient motor response
-
PID Control: Intelligent built-in PID for pressure, flow, and temperature control in HVAC and pumping applications
-
Overload Capacity: 120% for 60 seconds, 150% for 3 seconds (typical)
-
Built-in Protections: Overvoltage, undervoltage, overload, overcurrent, short circuit, phase loss, and stall protection
-
Modular Design:
-
Hot-pluggable LCD keypad
-
Removable cooling fans
-
I/O expansion and communication cards
-
-
Communication Options: Built-in Modbus & BACnet; optional Profibus, CANopen, DeviceNet, Modbus TCP, Ethernet/IP
-
Operating Temperature: Up to 50°C (with auto de-rating for continuous duty)
-
Certifications: CE, UL, cUL approved; conformal-coated PCB for harsh industrial environments
Key Advantages
-
Outstanding Energy Efficiency: Intelligent PID with sensorless vector control automatically adjusts motor speed to load demand, saving significant energy in fan and pump systems.
-
Fast Dynamic Response: Ensures stable operation under varying load conditions—ideal for HVAC and process industries.
-
Flexible Integration: Supports a wide range of industrial communication protocols for seamless integration with building management and SCADA systems.
-
Enhanced Reliability: Conformal-coated PCB, wide voltage tolerance, and advanced protection functions ensure reliable operation even in dusty or humid environments.
-
Easy Operation: Hot-swappable LCD keypad and intuitive setup minimize commissioning time and simplify system tuning.
-
Scalable & Modular: Modular architecture allows easy customization and expansion for complex automation networks.
Typical Industrial Applications
-
Variable-flow pumps and fans in HVAC systems
-
Air blowers and cooling towers
-
Water treatment and irrigation systems
-
Building and factory automation
-
General-purpose variable torque motor control
Upgrade your energy efficiency with Delta VFD CP2000 Series drives from Mine Power Coimbatore, Tamil Nadu.
Designed for pumps, fans, air blowers, and HVAC systems, the CP2000 Series offers sensorless vector control, intelligent PID regulation, and modular communication options like Modbus, BACnet, and Profibus.
Built to save energy and enhance performance, these drives ensure reliable operation even in harsh industrial environments.
Buy genuine Delta CP2000 drives from Mine Power, the trusted Delta VFD distributor in Coimbatore, for competitive prices, expert support, and fast delivery across Tamil Nadu.
