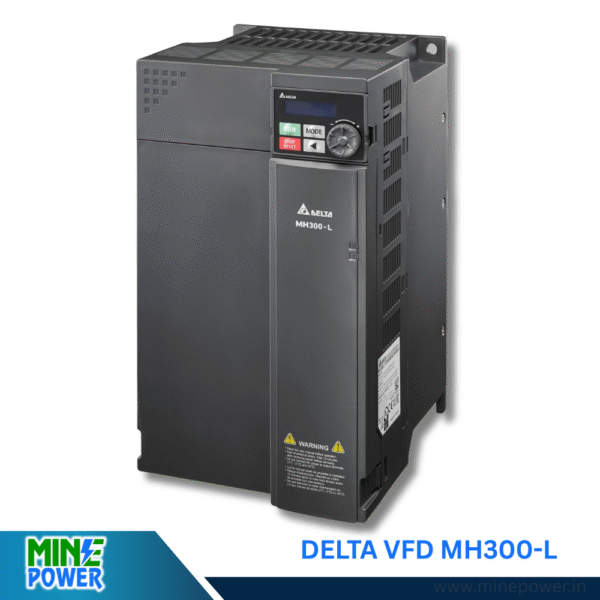

DELTA VFD MH300-L SERIES

Category: AC Motor Drives Brand: Delta

Description

Description

Delta VFD MH300-L Series – Compact Elevator Drives in Coimbatore, Tamil Nadu

The Delta VFD MH300-L Series is a high-performance elevator drive designed for open loop induction motor (IM) control, providing smooth, safe, and energy-efficient elevator operation. With about a 40% size reduction, advanced elevator-specific functions, and robust safety features, it is ideal for residential, commercial, and freight elevators in Coimbatore and across Tamil Nadu.

Full Specifications

Power Range: 2.2 kW (3 HP) to 15 kW (20 HP)
Input Voltage: 3-phase 230V and 460V, 50/60 Hz
Output Frequency: 0–599 Hz for precise speed control
Control Method: Open loop induction motor with EPS/ARD (Elevator Positioning System/Automatic Rescue Device)
Built-in Features:
- EMC filter compliant with EN 12015 / EN 12016
- Brake chopper for enhanced braking performance
- PLC capacity: 5,000 steps
- USB port for quick parameter setting, upgrade, and monitoring
- Screwless wiring terminals for fast installation
Overload Capacity: 150% rated current for 60 seconds; 200% for 3 seconds
Safety Standards: Integrated Safe Torque Off (STO) compliant with EN ISO 13849-1 Cat3/PLd, EN 60204-1 Cat0, EN 61508 SIL2, EN 62061 SIL CL 2
Communication: Built-in RS-485 (Modbus), CAN port
Enclosure & Dimensions: Compact, screwless front case, removable keypad; size reduced by ~40% for space-saving, side-by-side panel mounting

Key Advantages

Compact & Space-Saving: 40% smaller size enables side-by-side mounting and reduced panel footprint
User-Friendly: Removable keypad with LCD display and USB interface for fast setup and real-time monitoring
Elevator-Specific Functions: Precise motion control, slip compensation, 5 independent S-Ramps for smooth start/stop and leveling
Reliable & Safe: High overload capacity and integrated STO protect personnel and equipment
Robust Performance: Handles heavy elevator loads with high stability and efficiency
Easy Maintenance: Screwless wiring and removable components reduce service time and costs
Advanced Protection: Overcurrent, overvoltage, undervoltage, overtemperature, phase loss, and ground fault protection

“Mine Power introduces the Delta VFD MH300-L Series elevator drives in Coimbatore, Tamil Nadu — combining compact design with elevator-specific advanced functions. With open loop IM motor control, integrated Safe Torque Off, USB configurability, and precise motion control via EPS/ARD, MH300-L drives ensure smooth, safe, and energy-efficient operation for residential and commercial elevators across Tamil Nadu. Trust Mine Power for genuine Delta MH300-L drives, expert technical support, and competitive pricing.”
