Description

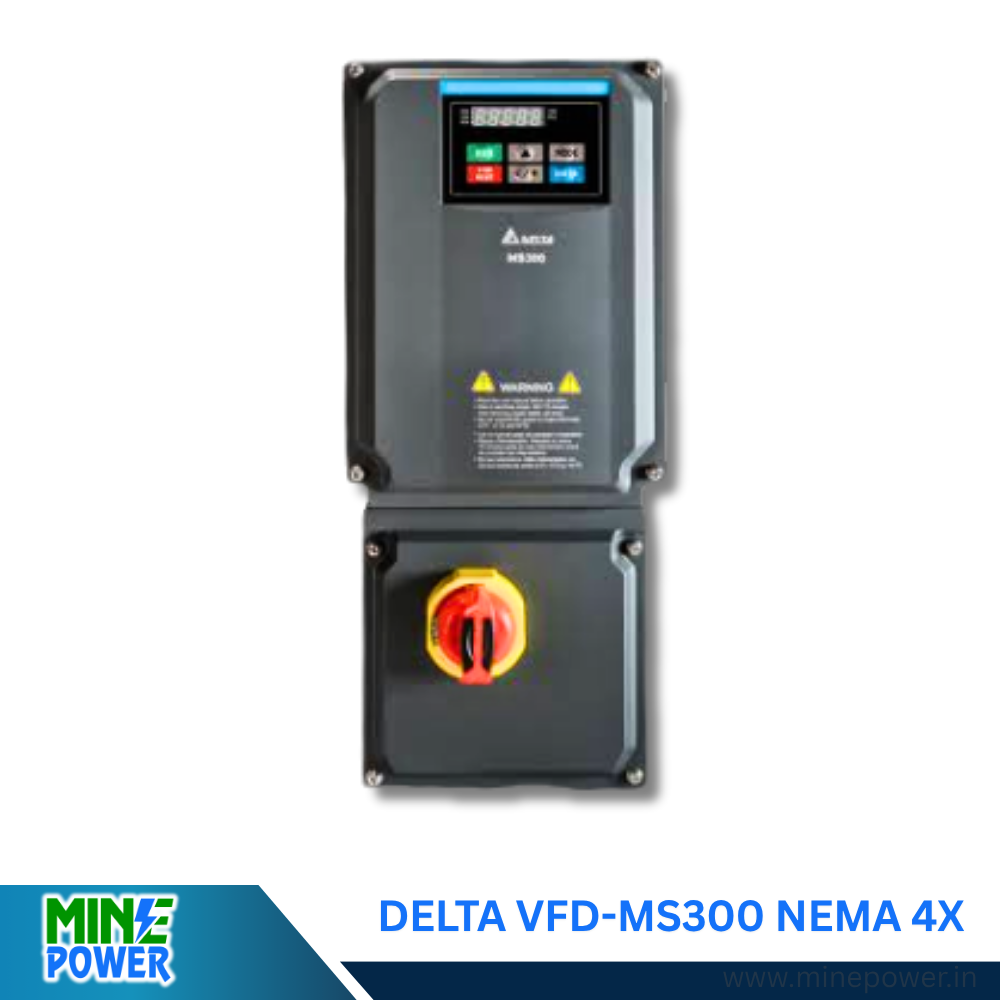

The Delta MS300 NEMA 4X is a high-performance, compact vector control drive designed to excel in demanding industrial environments. With its robust IP66/NEMA 4X rated enclosure, this VFD offers superior dustproof and waterproof protection, making it ideal for harsh conditions prevalent in sectors like food processing, water treatment, and heavy manufacturing around Coimbatore, Tamil Nadu. The MS300 supports both induction and permanent magnet motors with advanced Field-Oriented Control for precise speed and torque management. Featuring built-in Safe Torque Off (STO) for enhanced safety, a versatile 2k-step PLC, and flexible communication options, it delivers high starting torque and energy-efficient operation. Its compact design enables easy installation without requiring control cabinets, saving valuable space in your automation setup. Mine Power proudly supplies the Delta MS300 NEMA 4X drive, perfect for industrial automation needs in Coimbatore and Tamil Nadu, helping businesses achieve reliable, efficient motor control solutions with local expert support.
Here is the full technical specification summary for the Delta MS300 NEMA 4X series based on the official Delta documentation:
-
Protection Rating: IP66 / NEMA 4X (dustproof and waterproof, suitable for harsh industrial environments)
-
Input Voltage: Single-phase 230V and Three-phase 230V, 460V, and 575V variants available
-
Applicable Motor Power Range: 0.4kW to 15kW for IP66 models (varying by frame size)
-
Motor Types Supported: Induction motors (IM), interior permanent magnet (IPM) motors, surface permanent magnet (SPM) motors
-
Control Methods: Vector Control through FOC sensorless, SVC, and V/F control
-
Max Frequency Output: Standard up to 599 Hz; High-speed models up to 1500 Hz (with derating)
-
Starting Torque: Up to 200% at 0.5 Hz (FOC sensorless, heavy duty)
-
Overload Capacity: Normal duty 120% for 60 sec, 150% for 3 sec; Heavy duty 150% for 60 sec, 200% for 3 sec
-
Built-in Functions: PLC with 2000 steps, Safe Torque Off (SIL2/PL d safety), PID control, multiple motor control (up to 4 motors), EMC filter (optional or built-in),
-
Communication: RS-485 Modbus built-in; optional PROFIBUS DP, DeviceNet, EtherNet/IP, CANopen, EtherCAT, PROFINET cards
-
Braking: Built-in brake chopper; supports additional braking resistor
-
Cooling: Natural air cooling or fan cooling depending on frame size
-
Operating Temperature: -20°C to +50°C (with derating above 40°C)
-
Dimensions: Vary by model and frame; typical IP66 models are compact for panel or standalone installation
-
Compliance & Certifications: UL, CE, TUV, RoHS, RCM, REACH
This series is ideal for robust applications requiring high protection, compact footprint, flexible motor compatibility, and advanced control features in environments such as food processing, chemical, and industrial automation.
For detailed model-specific electrical data, dimensions, and options, please refer to the official Delta MS300 catalog and user manual.
